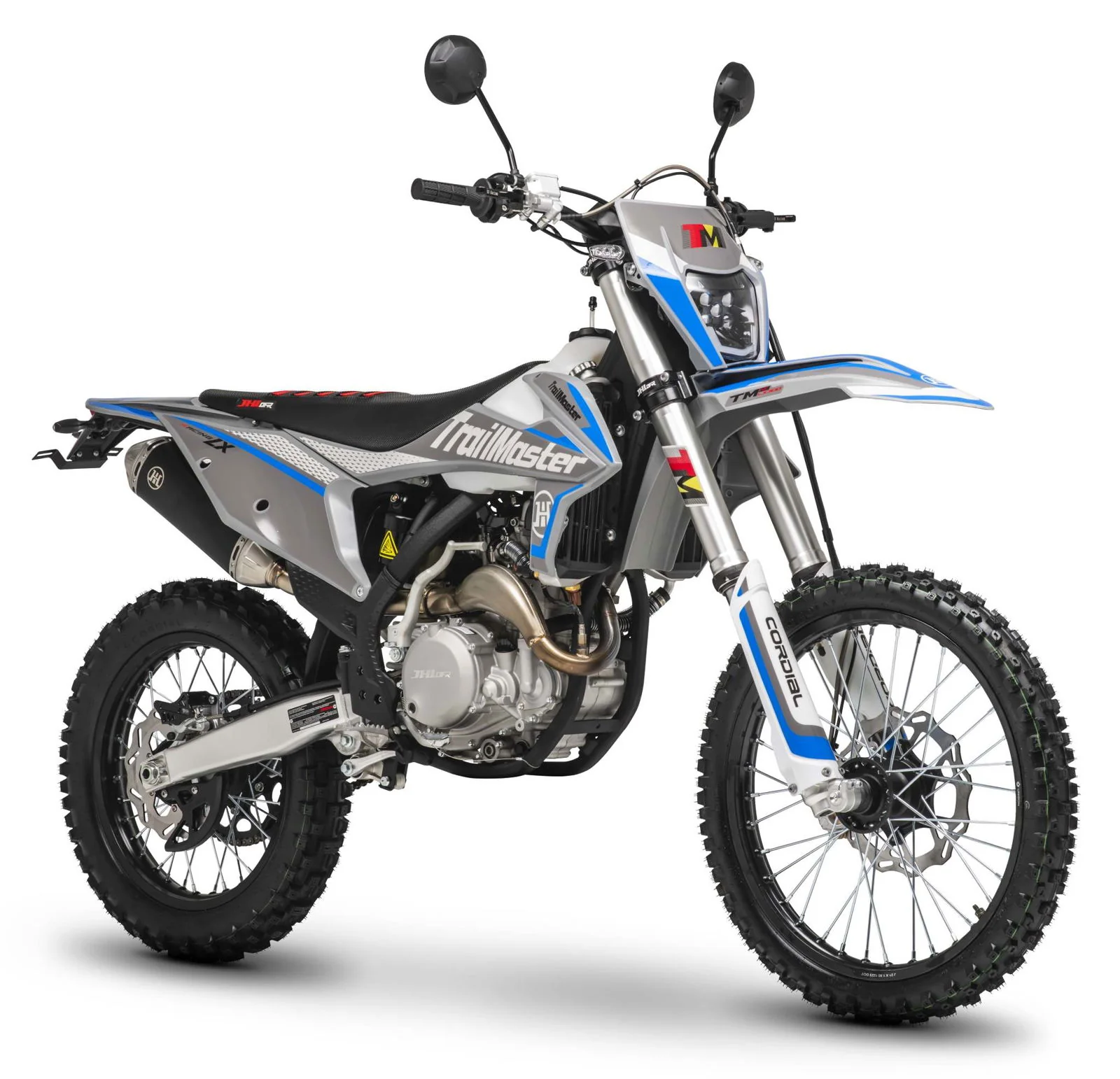

TrailMaster LX300 Dual Sport Dirt Bike, NC300 EFI Racing Engine, Liquid-Cooled, 6-Speed Manual, Dual Disc Brakes, Electric Start with Kick backup, Wheels (21/18)
Introducing the LX300 by TrailMaster in collaboration with JHL Offroad, a top-of-the-line PRO-Series mid-size dirt bike. With its dependable EFI Electronic Fuel Injected Zhongshen 283cc engine, boasting 23hp and a seat height of 37.4″, this bike offers both kick start and “ELECTRIC START” options. Weighing just 266lbs, it is a lightweight yet high-performance choice. Available in red and blue, the LX300 comes equipped with a 6-speed manual transmission, front and rear disc brakes, and inverted front shock.
This sturdy Dual Sport bike comes equipped with essential features such as Rearview mirrors, turn signals, speedometer, and taillight. Our top-of-the-line Pro-Series includes additional premium elements like a spacious frame, prominent 54/60-950mm inverted dual adjustable front shock absorber, top-notch rear dual adjustable absorber, efficient stainless steel performance muffler, advanced LED headlight with lens, robust CNC forged alloy wheels, high-performance CHOCHO 520HDS chain, indestructible CNC alloy levers, and sturdy upper and lower triple clamps made of CNC-forged alloy. Its 7-series aluminum alloy handlebar, waterproof wire harness, non-slip gripper seat, and reliable front and rear disc brakes further enhance the bike’s durability and functionality. The bike’s motocross ergonomics and race suspension system provide a natural and effortless handling experience, easily maneuvering through all types of terrain.
Features
- High Performance NC300Sc Balanced Shaft engine
- Liquid Cooled
- 6-Speed Manual Transmission
- Electric start with kick backup
- Seat Height 43″
- Inverted 54/60-950mm Forks
- Dual adjustable Front/Rear Shocks
- Performance stainless steel Muffler
- High quality LED headlight with lens
- CNC forged alloy wheels
- High performance CHOCHO 520HDS chain
- CNC alloy unbreakable levers
- CNC forged alloy upper and lower triple clamps
- 7 series aluminum alloy handlebars
- Waterproof wire harness
- Non-slip gripper seat
- Quality front and rear disc brakes
Specifications
|
Engine Type |
Zongshen NC300S, Single cylinder, 4-stroke, 4-valve, water-cooled, double overhead camshaft, with balance shaft |
|
Displacement (cc) |
283 |
|
Max Power |
23 (5%) / 9000 (#5%) |
|
Max Torque |
25 (₫5%) / 7000 (÷5%) |
|
Compression Ratio |
11.6 |
|
Shift Type |
6-speed Manual |
|
Start Type |
Electric / Kick Start |
|
Fuel Supply |
EFI |
|
Min. Fuel Consumption |
≤354 g/kw.h |
|
Minimum turning radius |
2500 mm |
|
Lubricant Type |
SJ 10W-40 |
|
Transmission |
Chain Drive |
|
Overall Size (L x W x H) |
2190*810*1290 mm / 86.28*31.91*50.82 Inch |
|
Wheelbase |
1500 mm / 59.1 Inch |
|
Seat Height |
950 mm / 37.43 Inch |
|
Ground Clearance |
300 mm / 11.82 Inch |
|
Fuel Capacity |
7 L / 2.11 Gal |
|
Wheels |
Aluminum alloy wheel rims, High Quality Alloy Hubs |
|
Tires |
Cordial tire 21″/18″ |
|
Frame |
30 CrMo steel, high strength |
|
Front shock |
Front single chamber dual adjustable inverted shock absorbers, 54/60- 950mm |
|
Rear Shock |
Rear compression and recovery damping adjustable shock absorber |
|
Rocker Arm |
Forged aluminum alloy linkage |
|
Upper and Lower Triple Clamps |
CNC forged aluminum alloy |
|
Handle levers |
CNC alloy unbreakable levers |
|
Handlebar |
7 Series aluminum alloy |
|
Front Brake |
Disc |
|
Rear Brake |
Disc |
|
Exhaust |
Stainless steel muffler |
|
Fork |
Aluminum alloy welded fork |
|
Chain |
CHOCHO 520HDS |
|
Sprocket |
Alloy |
|
Brake |
GG grade |
|
With |
LED headlights with lens |
|
With |
Turning lights/ Taillights |
|
With |
LED speedometer |
|
With |
Rear mirrors |
|
With |
Rear disc protection cover |
|
Packing Size |
2200*460*1280 mm / 86.68*18.12*50.43 Inch |
|
N.W/LBS |
121 KGS / 266.2 LBS |
|
G.W/LBS |
166 KGS / 365.2 LBS |
