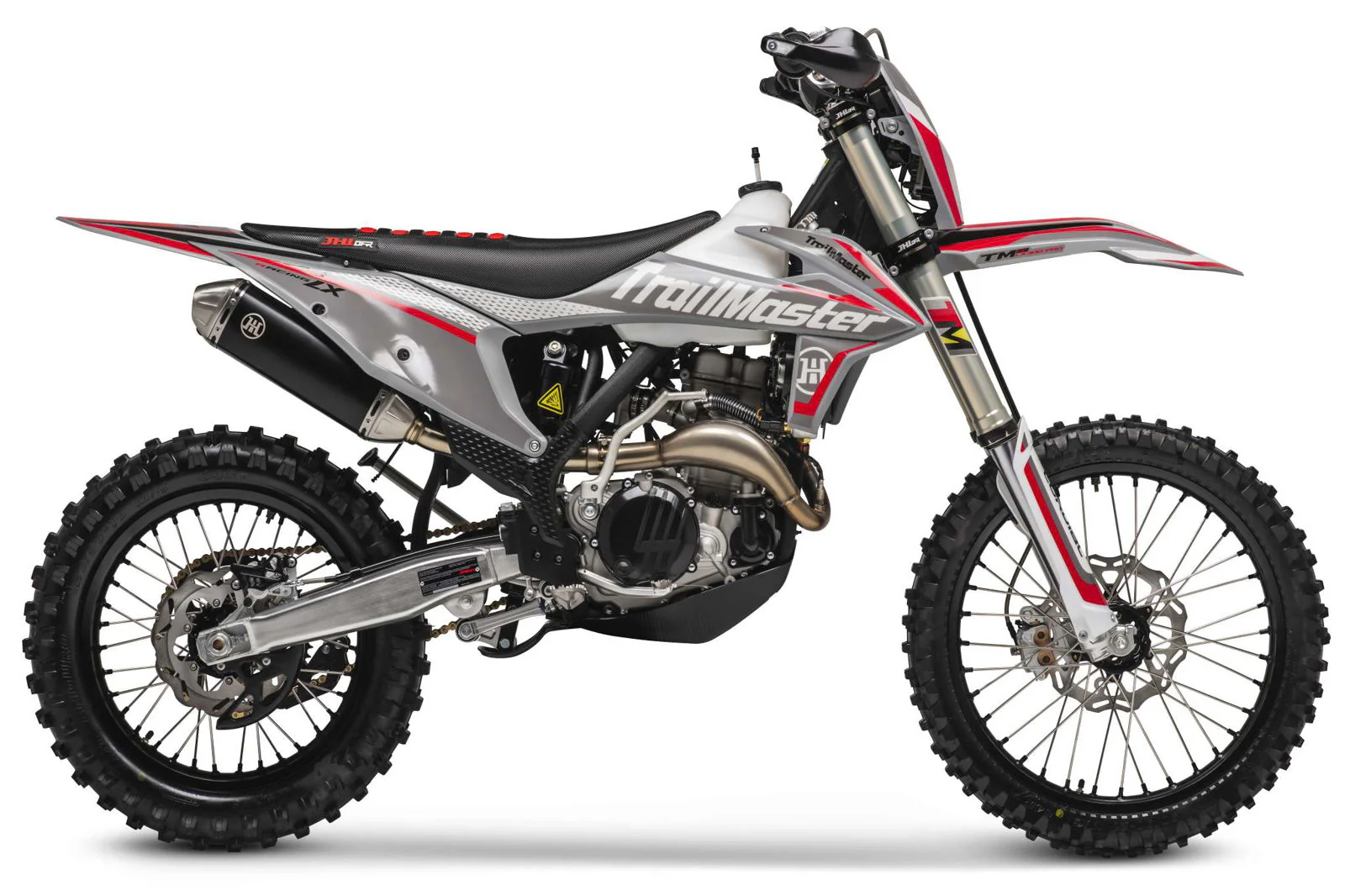

TrailMaster LX300-Pro Dirt Bike, NC300 EFI Racing Engine, Liquid-Cooled, 6-Speed Manual, Dual Disc Brakes, Electric Start with Kick backup, Billet Wheels (21/1)

TrailMaster LX300-Pro Dirt Bike, NC300 EFI Racing Engine, Liquid-Cooled, 6-Speed Manual, Dual Disc Brakes, Electric Start with Kick backup, Billet Wheels (21/1)

As a leader in off-road vehicles, TrailMaster partnered with JHL Offroad to present the LX 300 PRO – a top-of-the-line PRO-Series full-size dirt bike designed for racing. Boasting a powerful and dependable Zhongshen 283cc 4-stroke 23hp EFI Electronic Fuel Injected Water-Cooled engine, this bike offers both a kick start and an “ELECTRIC START” feature. With a seat height of 37.4″ and a lightweight build of 266lbs, it provides the perfect balance of comfort and agility. Available in eye-catching red and blue colors, the LX 300 PRO also includes a 6-speed manual transmission, front and rear disc brakes, and an inverted front shock for optimal performance.

The TrailMaster LX300-Pro Dirt Bike NC300 EFI boasts a variety of premium features, including a spacious frame, an inverted 54/60-950mm dual adjustable front shock absorber, a high-quality rear dual adjustable shock absorber, and a performance stainless steel muffler. Other notable components include a high-quality LED headlight, CNC forged alloy wheels, high performance CHOCHO 520HDS chain, CNC alloy unbreakable levers, and CNC forged alloy upper and lower triple clamps. The bike is equipped with a waterproof wire harness, non-slip gripper seat, and quality front and rear disc brakes, creating a full-on motocross experience. Its ergonomics and race suspension system allow for natural and effortless handling, making it suitable for any terrain. Featuring electronic CDI ignition, the bike starts with ease and maintains a smooth ride in all gears, providing a broad, even power band.

Features

Powerful water-cooled 283cc (23hp) Zongshen balanced shaft EFl engine

Large frame with 37.43 inch seat height

Inverted 54/60-950mm dual adjustable front shock absorber

High quality rear dual adjustable absorber

Performance stainless steel muffler

High quality LED headlight with lens

CNC forged alloy wheels

High performance CHOCHO 520HDS chain

CNC alloy unbreakable levers

CNC forged alloy upper and lower triple clamps

7 series aluminum alloy handlebars

Waterproof wire harness

Non-slip gripper seat

Quality front and rear disc brakes

Panasonic cooling fan

Aluminum alloy water tank cover

Plastic engine body covers

Engine bottom shield

Hand grip protector

Hour meter

Rear disc brake rotor guard

Specifications

Engine Type	Zongshen NC300S, Single cylinder, 4-stroke, 4-valve, water-cooling, double overhead camshaft, with balance shaft
Displacement (cc)	283
Max Power	23 (₫5%) / 9000 ($5%)
Max Torque	25 (5%) / 7000 (‡5%)
Compression Ratio	11.6
Shift Type	6-speed Manual
Start Type	Electric / Kick Start
Fuel Supply	EFI
Min. Fuel Consumption	≤354 g/kw.h
Minimum turning radius	2500 mm
Lubricant Type	SJ 10W-40
Transmission	Chain Drive
Overall Size (L x W x H)	2190*810*1290 mm / 86.28*31.91*50.82 Inch
Wheelbase	1500 mm / 59.1 Inch
Seat Height	950 mm / 37.43 Inch
Ground Clearance	300 mm / 11.82 Inch
Fuel Capacity	7 L / 1.85 Gal
Wheels	GLM 7-series aluminum alloy, CNC hubs
Tires	KENDA tire 21″/18″
Frame	30 CrMo steel, high strength
Front shock	Front dual chamber dual adjustable inverted shock absorbers
Rear Shock	Rear triple adjustable shock absorber
Rocker Arm	CNC aluminum alloy linkage

Upper and Lower Triple Clamps	CNC forged aluminum alloy
Handle levers	CNC alloy unbreakable levers
Handlebar	7 Series aluminum alloy
Front Brake	Disc
Rear Brake	Disc
Exhaust	Stainless steel muffler
Fork	Aluminum alloy welded fork
Chain	DID
Sprocket	Alloy
Brake	GG grade
With	LED headlights with lens
With	Panasonic cooling fan
With	Aluminum alloy water tank cover
With	Plastic engine body covers (left & right)
With	Engine bottom shield
With	Hand grip protector
With	Hour Meter
With	Rear disc protection cover
Packing Size	2200*460*1280 mm / 86.68*18.12*50.43 Inch
N.W/LBS	121 KGS / 266.2 LBS
G.W/LBS	166 KGS / 365.2 LBS
