Description

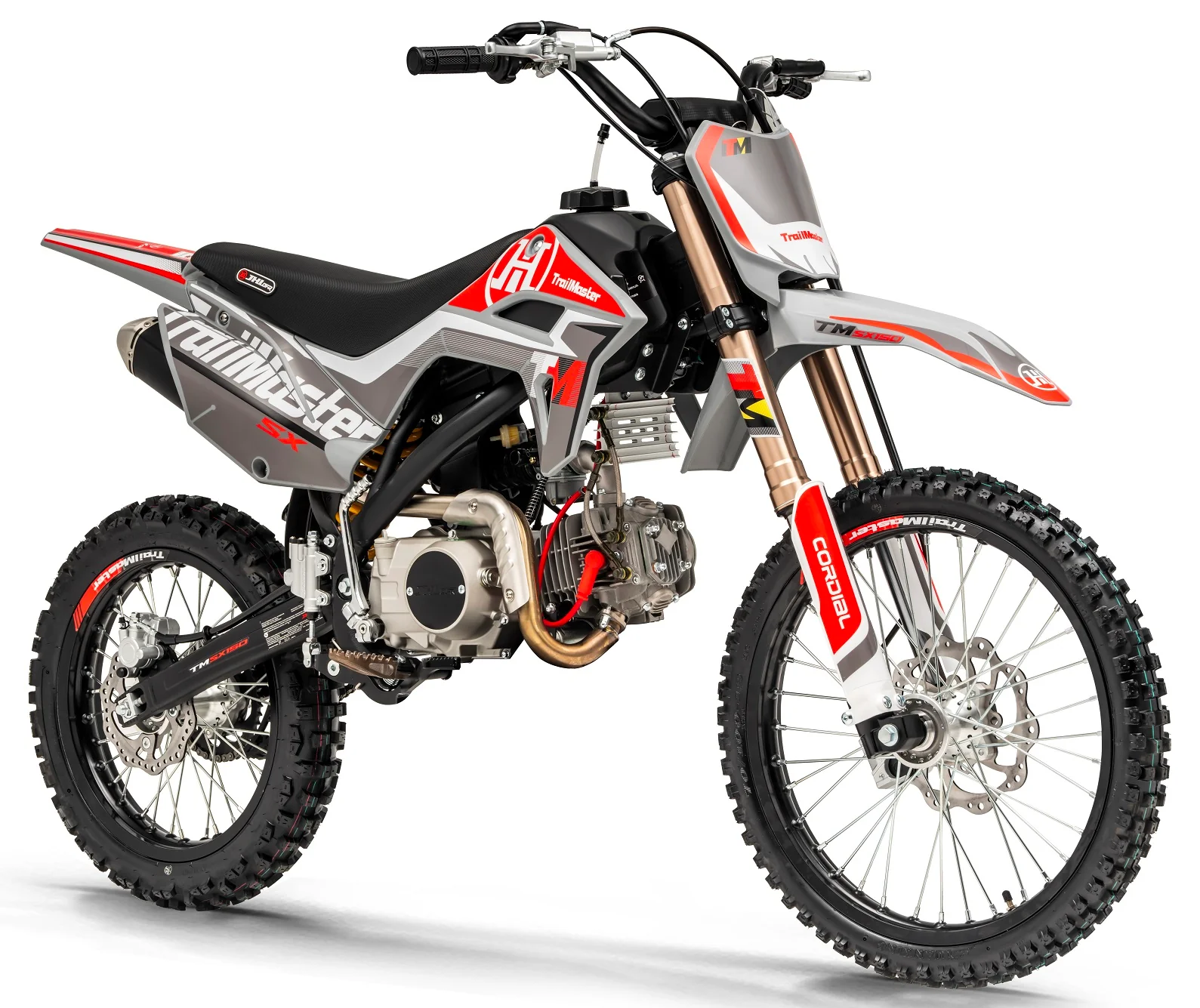

TrailMaster SX150 Pro Series Dirt Bike, Electric Start, 4-Speed Manual, Dual Disc Brakes, (19/16) Wheels

The TrailMaster SX150 Pro Series Dirt Bike, a collaboration between TrailMaster and JHL Offroad, boasts an advanced Zhongshen 140cc 4-stroke engine that delivers 6.8 horsepower with both a kick start and an electric start option. With a slim weight of 189lbs and 19/16 wheels, this mid-size dirt bike offers high performance and reliability. Available in red, blue, and green, the SX150 features a 4-speed manual transmission and front and rear disc brakes. Its seat height of 32.7″ and inverted front shock enhance the rider’s experience.

The TrailMaster JHL Pro-Series line boasts standard premium items such as both electric and kick start options, a 140cc oil cooling engine for powerful performance, an after-market Nibbi PE22 performance carburetor for optimal function, an innovative frame design for a smoother ride, a high-performance inverted front shock absorber, and a 33″ seat perfect for groups of wide riders. Enjoy a wide and non-slip seat for comfortable riding, a nitrogen air gas rear shock absorber with aluminum linkage, a performance stainless steel muffler, an alloy handlebar, upper and lower triple clamps, foldable handle levers, reinforced alloy rims and hubs, 19″ front and 16″ rear Yuanxin Tires, and superior quality front and rear disc brakes.

Key Features

Electric and kick start

Powerful 140cc oil-cooled engine

Nibbi PE22 performance carburetor for ultimate performance

Newly innovated frame design for smoother riding

High performance inverted front shock absorber

33″ seat high perfect for wide groups of riders

Wide and high-quality non-slip seat for comfortable riding

Nitrogen air gas rear shock absorber w/aluminum linkage

Performance stainless steel muffler

Alloy handlebar

Alloy upper and lower triple clamps

Alloy foldable handle levers

High quality reinforced alloy rims and hubs

Large 19″ front and 16″ rear Yuanxin Tires

Superior quality front and rear disc brakes

Specifications

Engine Type

140cc, Single cylinder, four stroke, air-cooling /Oil-cooled

Displacement

140 ml

Max Power

6.8/7500 (11.5%)

Max Torque

9.7/5500 (1÷1.5%)

Compression Ratio

8.8:1

Shift Type

Four gear, non-circulate gear

Start Type

Electric / Kick Start

Ignition

CDI

Min. Fuel Consumption:

≤367g/kw.h

Minimum turning radius:

1900 mm

Lubricant Type #:

SF15W/40

Transmission:

Chain Drive

Overall Size (L x W x H)

71.31 x 29.16 x 43.34 Inch / 1810x740x1100 mm /

Wheelbase

49.25 Inch / 1250 mm

Seat Height

32.70 Inch / 830 mm

Ground Clearance

13.26 Inch / 340mm

Fuel Capacity

1.56 Gal. / 6 L

Wheels

Alloy 19/16 Rims, Alloy Hubs

Tires

YUANXING FT: 70/100-19 – RR: 90/100-16

Overall Size (L x W x H)

71.31 x 29.16 x 43.34 Inch / 1810x740x1100 mm /

Wheelbase

49.25 Inch / 1250 mm

Seat Height

32.70 Inch / 830 mm

Ground Clearance

13.26 Inch / 340mm

Fuel Capacity

1.56 Gal. / 6 L

Wheels

Alloy 19/ 16 Rims, Alloy Hubs

Tires

YUANXING FT: 70/100-19 – RR: 90/100-16

Frame

High-quality Steel Frame

Front Fork

Inverted, non-Adjustable

Rear Shock

Alloy U&D connector, Non-Adjustable

Upper and Lower Connecting

Board

Alloy

Handlebars

Alloy and Foldable

Front Brake

Disc

Rear Brake

Disc

Exhaust

Stainless Steel

Packing Size

63.82*17.92*33.49 Inch/ 1620*455*850 mm

N.W/LBS

189.2 LBS / 86 KGS

G.W/LBS

237.6 LBS / 108 KGS
