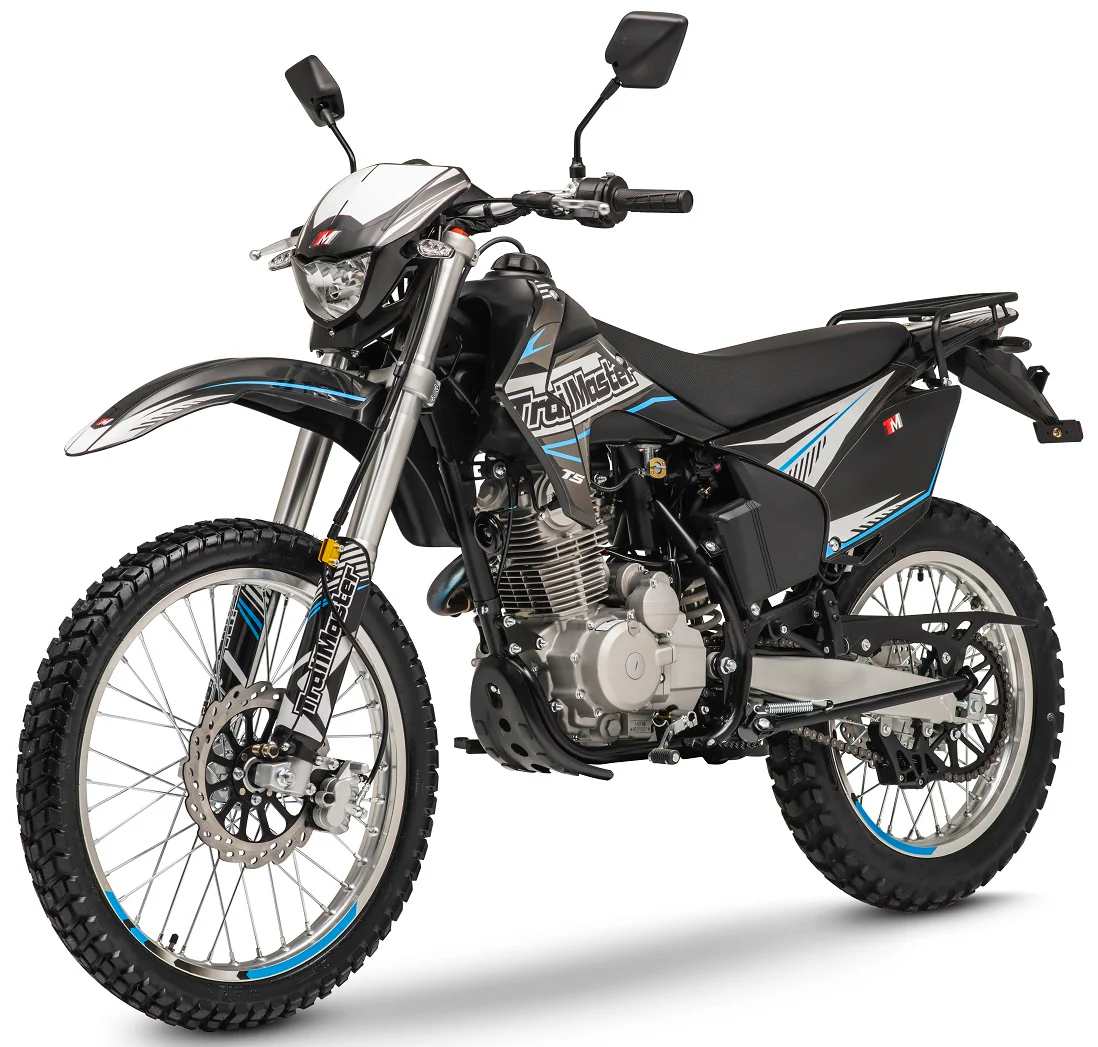

TrailMaster T5 Dual Sport Dirt Bike, 5-Speed Manual, 223cc Engine, Dual Disc Brakes, Electric Start with Kick backup, (21/18) Wheels
From the perspective of a product expert, Trailmaster proudly presents the all-new T5. This remarkable addition to Trailmaster’s dirt bike lineup boasts upgraded performance and a sleek new frame design. Featuring adjustable inverted front forks, electric and kick start options, and a lightweight all steel twin-spar style frame, this bike is ready for any adventure. The outstanding top speed of up to 60 mph is thanks to the Zongshen engine and 5-speed manual transmission. The 21-inch front tire and 19-inch rear tire provide exceptional ground clearance, while the airbag-style shock in the rear suspension ensures a smooth ride. With lightweight aluminum rims for a superior power-to-weight ratio, the T5 outperforms its competitors. This TrailMaster T5 Dual Sport Dirt Bike features a digital display for easy access to information, as well as an LED headlight for nighttime rides. It also includes blinkers, brake lights, side view mirrors, and a license plate holder, making it compliant with street legal standards in a variety of states.
Specifications
Engine System
|
Engine Type |
Zongshen CB250D-G,Single cylinder, four-stroke |
|
Displacement (ML) |
223cc |
|
Max Power (Kw/r/min) |
12.00/7000 (1÷1.5%) |
|
Max Torque(N.m/r/min) |
17.50/5500 (11.5%) |
|
Max. Load Capacity (kg) |
150 |
|
Max. Speed |
57 M/H |
|
Compression Ratio |
9.6: 1 |
|
Shift Type |
International five gears |
|
Start Type |
Electric / Kick Start |
|
Ignition |
CDI |
|
Min. Fuel Consumption: |
≤354(g/ (kW-h) |
|
Minimum turning radius: |
2600mm |
|
Lubricant Type: |
SF 15W/40 |
|
Chain: |
520 CHOCHO |
|
Transmission: |
Chain Drive |
|
Size Data |
|
|
Overall Size (L x W x H) |
2100mm*810mm*1180mm / 82.74 * 31.91* 46.49 |
|
Wheel Base |
1400 mm / 55.16 Inch |
|
Seat Height |
890 mm / 35.07 Inch |
|
Ground Clearance |
290 mm / 11.43 Inch |
|
Fuel Capacity |
2 Gal/9L |
|
Rims |
Aluminium |
|
Hubs |
Aluminium |
|
Tires |
YUANXING FT: 80/100-21 – RR: 110/100-18 |
Frame/Suspension/Brakes
|
Frame |
High quality Steel Frame |
|
Front Fork |
Inverted front shock absorber, 48/51-800mm |
|
Rear Shock |
Built-in airbag rear shock absorber |
|
Upper and Lower Connecting Board |
Aluminium alloy |
|
Handle bar |
Aluminium alloy Reducing Handle Bar |
|
Front Brake |
Disc 252mm |
|
Rear Brake |
Disc 220mm |
|
Exhaust |
Stainless Steel |
Packing and Loading
Packing Size
70.92*18.12*34.78 Inch/ 1800*460*870 mm
N.W/LBS
118.00 KGS / 259.6 LBS
G.W/LBS
140.00 KGS / 308.00 LBS
