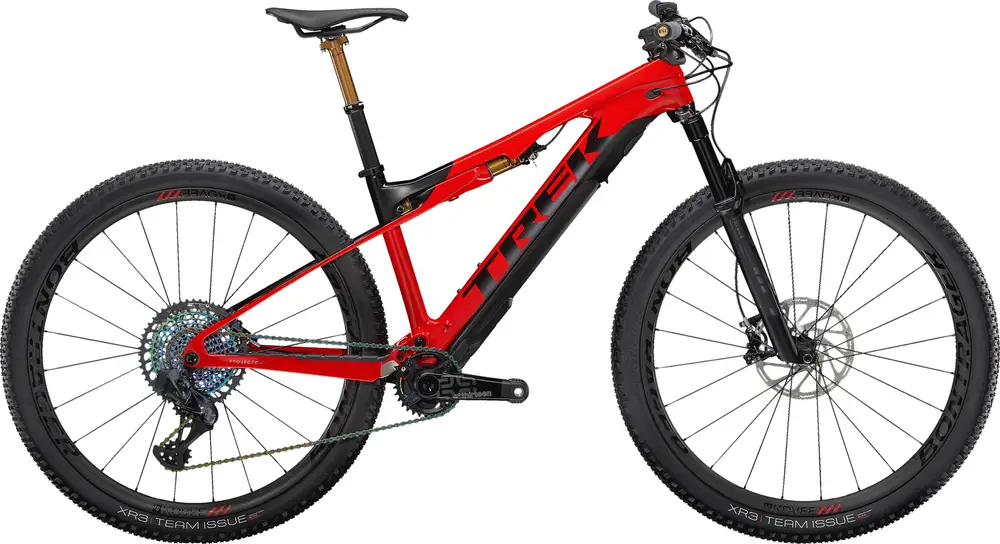

2022 Trek E-Caliber 9.9 XX1 AXS A 29″ carbon frame full suspension crosscountry e-bike with ultra high-end components.
Build
| Frame | OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel Tire Clearance: 2.4″ Colors: Alpine Navy Smoke / Trek White; Marigold to Radioactive Red Fade; Carbon Blue Smoke; Gloss Radioactive Red / Matte Black |
|---|---|
| Fork | RockShox SID Ultimate, DebonAir spring, Charger Race Day damper, remote lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel |
| Rear Shock | Trek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235mm x 32.5mm |
| Headset | Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8” top, 1.5” bottom |
| Stem | Size: S, M, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 60mm length; Size: L, XL, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 70mm length |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width |
| Saddle | Bontrager Verse Pro, carbon rails, 145mm width |
| Seatpost | Fox Transfer SL, 100mm travel, internal routing, 31.6mm |
| Grips | ESI Chunky |
Groupset
| Rear Derailleur | SRAM XX1 Eagle AXS |
|---|---|
| Crank | E*thirteen E*spec Race Carbon, 32T, 175mm length |
| Shifters | SRAM Eagle AXS, wireless, 12 speed |
| Cassette | SRAM Eagle XG-1299, 10-52, 12 speed |
| Chain | SRAM XX1 Eagle, 12 speed |
| Brakes | SRAM G2 Ultimate hydraulic disc, carbon levers |
Wheels
| Rims | Front: Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, centerlock, Boost110, 15mm thru axle, Rear: Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, DT Swiss 54T engagement, centerlock, SRAM XD driver, Boost148, 12mm thru axle |
|---|---|
| Tires | Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29×2.40” |
| Disk Rotors | Size: S, M, L, XL, SRAM CenterLine, centerlock, round edge, 180mm; Size: S, M, L, XL, SRAM Centerline, centerlock, round edge, 200mm |
Electric Components
| Motor | Fazua Ride Trail 50 motor |
|---|---|
| Battery | Fazua Evation battery, 250Wh |
| Charger | Fazua Evation charger, 90-120V |
