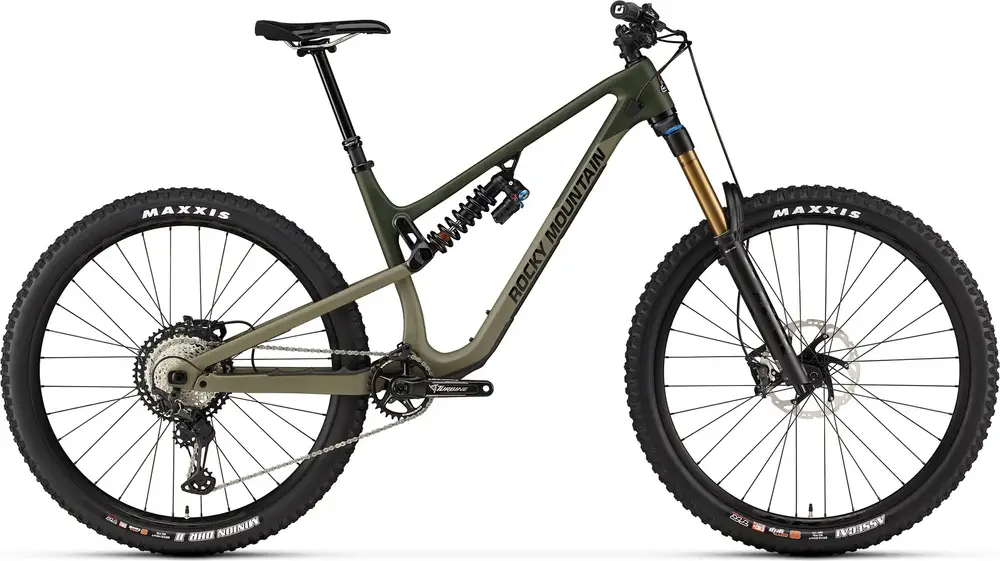

2022 Rocky Mountain Altitude Carbon 70 Coil A 27.5″ / 29″ carbon frame full suspension enduro bike with high-end components.
Build
| Frame |
SMOOTHWALL Carbon. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9 Adjustable Geometry. 2 Position Axle. 160mm Travel. SMOOTHWALL Carbon Rear Triangle BB Standard: BB86/BB92, Press Fit Color: Green / Green |
|---|---|
| Fork |
Fox 38 Float EVOL GRIP2 Factory Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset |
| Rear Shock |
Fox DHX2 Factory | Sealed Bearing Eyelet | 25x8mm F Hardware | SM = 210x55mm | MD – LG – XL = 230x60mm | Size-Specific tune in FAQ |
| Bottom Bracket |
Race Face BB92 30mm |
| Headset |
FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5″ Crown Race |
| Stem |
Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m |
| Handlebar |
Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
| Saddle |
WTB Volt Race 142 |
| Seatpost |
Race Face Turbine R (by Fox) Dropper 30.9mm | SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm |
| Grips |
ODI Elite Pro Lock On |
Groupset
| Rear Derailleur |
Shimano XT |
|---|---|
| Crank |
Race Face Turbine Cinch | 32T | 30mm Spindle | 170mm Crank Length |
| Shifters |
Shimano XT |
| Cassette |
Shimano XT 10-51T |
| Chain |
Shimano M8100 |
| Brakes |
Shimano XT Trail 4 Piston | IceTec Metal Pads | F: Shimano RT86 203mm | R: Shimano RT86 180mm |
Wheels
| Rims |
Race Face AR 30 | 32H | Tubeless Ready – Tape | Valves Incl |
|---|---|
| Spokes |
DT Swiss Competition 2.0/1.8/2.0 |
| Front Hub |
Rocky Mountain Sealed Boost 15mm |
| Rear Hub |
Race Face Trace Boost 148mm | 10° Engagement |
| Tires |
F: Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+ Tubeless Ready | R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready | |
