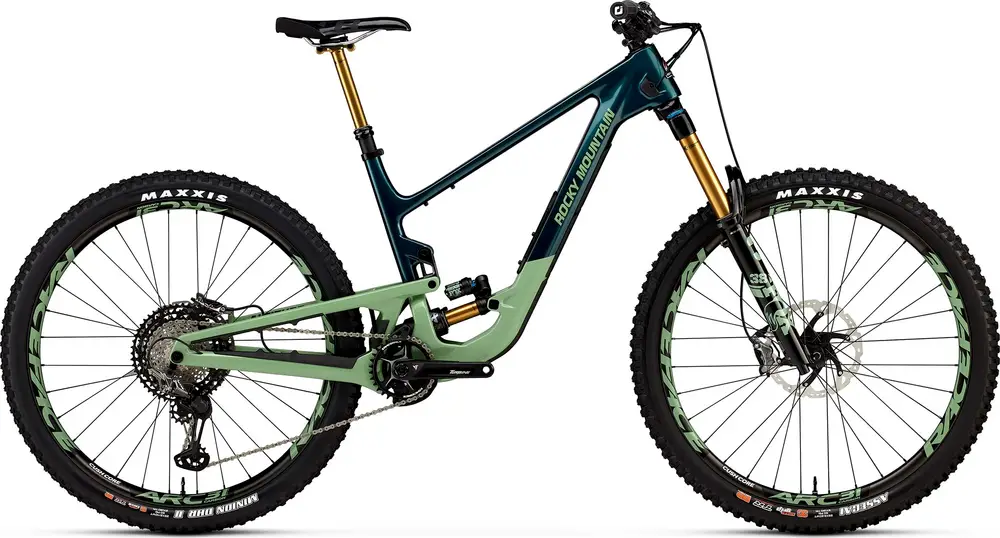

Rocky Mountain Altitude Carbon 90 Rally 2024 Overview
Build
| Frame |
SMOOTHWALL Carbon | Full Sealed Cartridge Bearings | BSA Bottom Bracket | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4 Adjustable Geometry |160mm Travel. SMOOTHWALL Carbon Rear Triangle BB Standard:?BSA, 73mm, Threaded Color:?Green / Green |
|---|---|
| Fork |
Fox 38 Float EVOL GRIP2 Factory Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset Travel:?170mm Spring Type:?Air |
| Shock |
Fox Float X2 Factory | Sealed Bearing Eyelet | 40x10mm F Hardware | SM = 210x55mm | MD – LG – XL = 230x60mm | Size-Specific tune in FAQ Travel:?160mm |
| Bottom Bracket |
Race Face BSA 73 30mm |
| Headset |
FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36×45 Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5″ Crown Race |
| Stem |
Race Face Turbine R | 0 Rise | All Sizes = 40mm |
| Handlebar |
Race Face Next R | 780mm Width | 35mm Rise | 8 Backsweep | 5 Upsweep | 35mm Clamp |
| Saddle |
WTB Volt Race 142 |
| Seatpost |
Fox Transfer Factory Series 30.9mm | SM = 150mm | MD = 175mm | LG – XL = 200mm Type:?Dropper |
| Grips |
ODI Elite Pro Lock On |
Groupset
| Rear Derailleur |
Shimano XTR |
|---|---|
| Crank |
Race Face Turbine Cinch | 32T | 30mm Spindle | SM = 165mm | MD – XL = 170mm |
| Shifters |
Shimano XTR |
| Cassette |
Shimano XTR 12s 10-51T |
| Chain |
Shimano XTR 12s |
| Brakes |
Shimano XTR Trail 4 Piston | IceTec Metal Pads Type:?Hydraulic Disc |
Wheels
| Rims |
Race Face ARC Carbon 31 | 32H / Tubeless Ready – Tape / Valves Incl |
|---|---|
| Spokes |
DT Swiss Competition 2.0/1.8/2.0 |
| Front Hub |
DT Swiss 350 Boost 15mm |
| Rear Hub |
DT Swiss 350 Boost 148mm | 36T Star-Ratchet |
| Tires |
F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready // Cushcore Trail Tire Inserts | Lightweight | Tire & Rim Protection |
