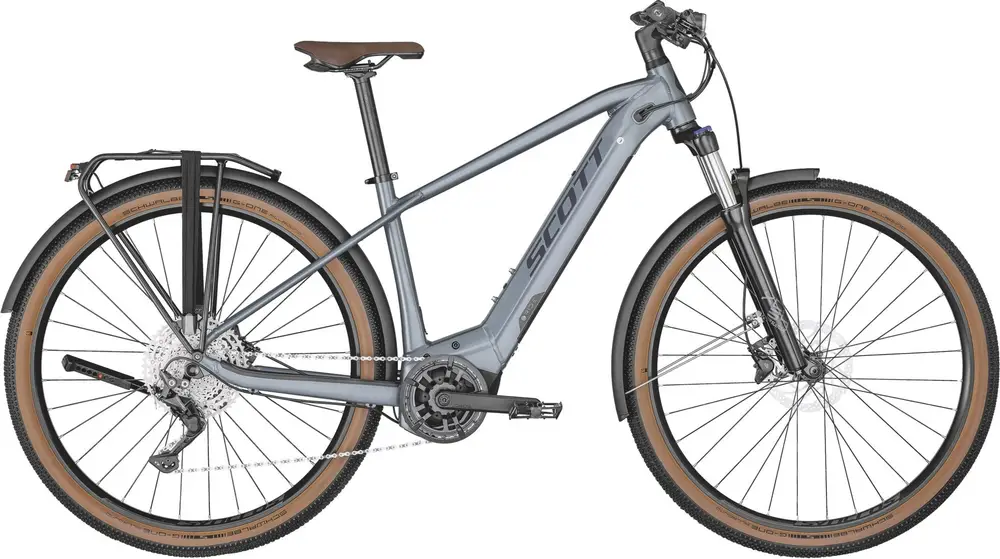

2022 Scott Axis eRIDE 20 Men A 29″ aluminum frame hardtail crosscountry e-bike with upper mid-range components.
Build
| Frame |
Alloy S-XL=29″ / 6061 Alloy custom butted tubing Bosch Integr. removable Battery Range Booster Ready / internal cable routing / slanted Motor BB Standard:Â Bosch, Press Fit |
|---|---|
| Fork |
SR Suntour XCR34 Coil / Tapered / S-XL 29″ 100mm Travel / 15×110 bolt Axle / Lock Out |
| Bottom Bracket |
Bosch, press-fit |
| Headset |
Syncros FL2.0 Urban / Tapered 1.5″-1 1/8″ semi integ. OD 50/61mm / ID 44/55mm |
| Stem |
Syncros UC3.0 with integrated Light |
| Handlebar |
Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise Syncros Lock On Grip |
| Saddle |
Selle Royale Essenza |
| Seatpost |
Syncros M3.0 / 31.6 |
| Pedals |
VP VPE-506 |
Groupset
| Rear Derailleur |
Shimano Deore / 11 Speed |
|---|---|
| Crank |
Miranda 172,5MM |
| Shifters |
Shimano Deore Trigger SLM5100RA |
| Cassette |
Shimano CS-M5100-11 11-51T 11S |
| Chain |
KMC E11S |
| Brakes |
Shimano BR-MT400 Disc 180/F SM-RT30 CL and 180/R RT-EM300M CL rotor |
Wheels
| Rims |
Syncros X18 Disc / 32H Tubeless ready |
|---|---|
| Spokes |
Black Spokes |
| Front Hub |
Shimano HB-MT400 / 15x110mm |
| Rear Hub |
Shimano FH-MT400B / Boost 12x148mm |
| Tires |
Schwalbe G-One Allround Performance 29×2.25″ Wired |
Electric Components
| Motor |
Bosch Performance EU: 25kmh / US: 20mph |
|---|---|
| Battery |
PowerTube 500Wh |
| Remote |
Purion Display |
| Charger |
2A Charger |
