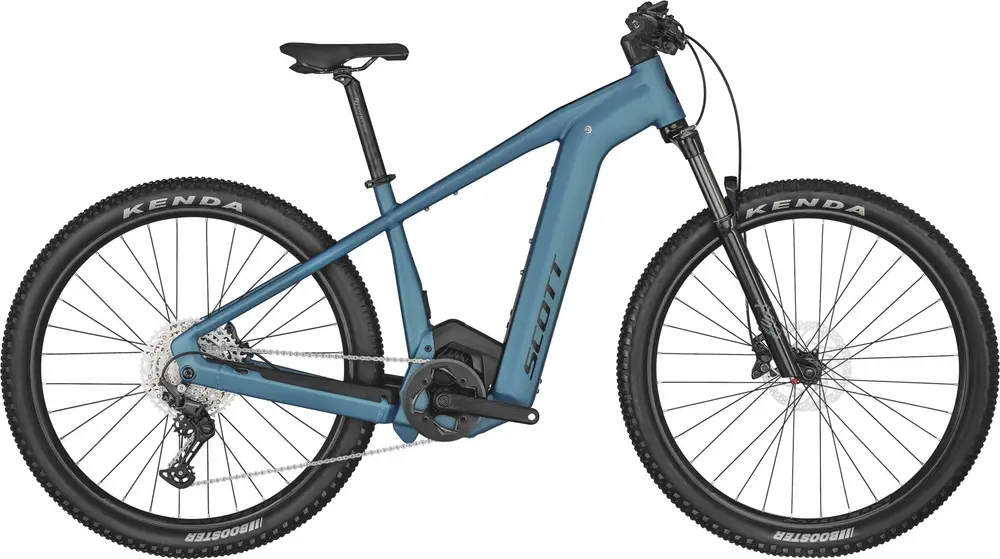

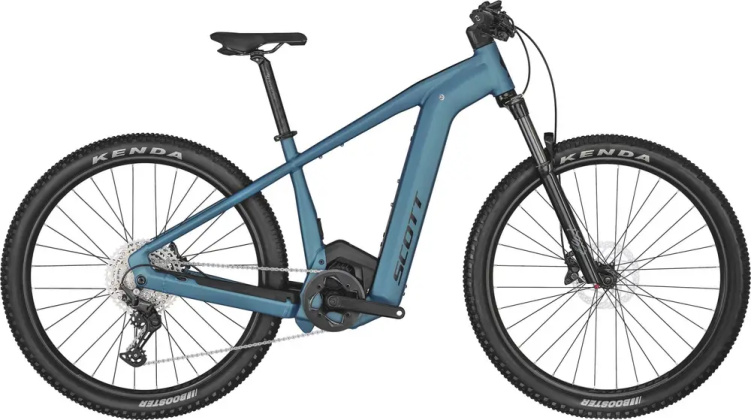

2022 Scott Axis eRIDE EVO Men A 29″ aluminum frame hardtail trail e-bike with upper mid-range components.
Build
| Frame |
Alloy S-XL=29″ / 6061 Alloy custom butted tubing Bosch Integr. removable Battery internal cable routing BB Standard:Â Bosch, Press Fit |
|---|---|
| Fork |
SR Suntour XCR34 Air / Tapered / S-XL 29″/ 120mm Travel / 15×110 bolt Axle / Remote Lock Out |
| Bottom Bracket |
Bosch, press-fit |
| Headset |
Acros / 1.5″- 1.5″ semi integ. OD 50/61mm / ID 44/55mm |
| Stem |
Syncros FL 2.0 |
| Handlebar |
Syncros AM2.0 / 6061 Alloy / 31.8mm / 4° / 1 1 / 8″ Syncros Lock On Grip |
| Saddle |
Syncros Capilano |
| Seatpost |
Syncros M3.0 / 31.6 |
| Pedals |
VP VPE-506 |
Groupset
| Rear Derailleur |
Shimano Deore / 12 Speed |
|---|---|
| Crank |
Miranda 172,5MM |
| Shifters |
Shimano Deore Trigger SL-M6100RC |
| Cassette |
Shimano CS-M6100-12 10-51T 12S |
| Chain |
KMC E12S |
| Brakes |
Shimano BR-MT400 Disc 180/F and 180/R SM-RT30 CL rotor |
Wheels
| Rims |
Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready |
|---|---|
| Spokes |
Black Spokes |
| Front Hub |
Formula CL-811 / 15x110mm |
| Rear Hub |
Shimano FH-MT400B / Boost 12x148mm |
| Tires |
Kenda Booster 29×2.6″ / 30TPI |
Electric Components
| Motor |
Bosch Performance CX BES3 |
|---|---|
| Battery |
PowerTube 750Wh |
| Remote |
Kiox Display |
| Charger |
4A Charger |
