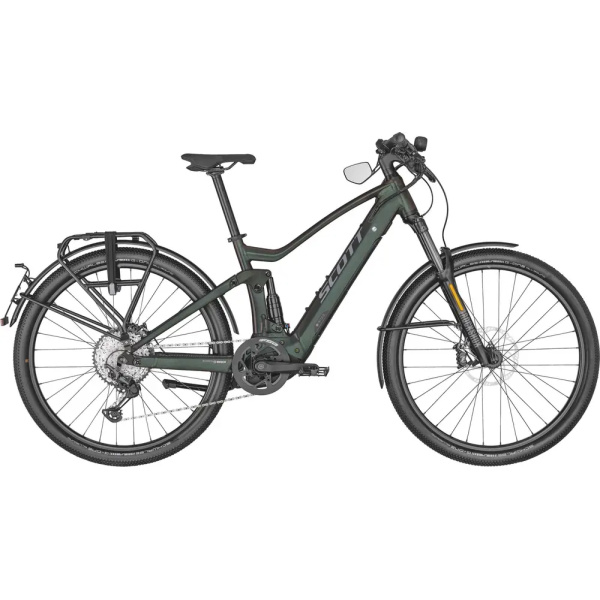

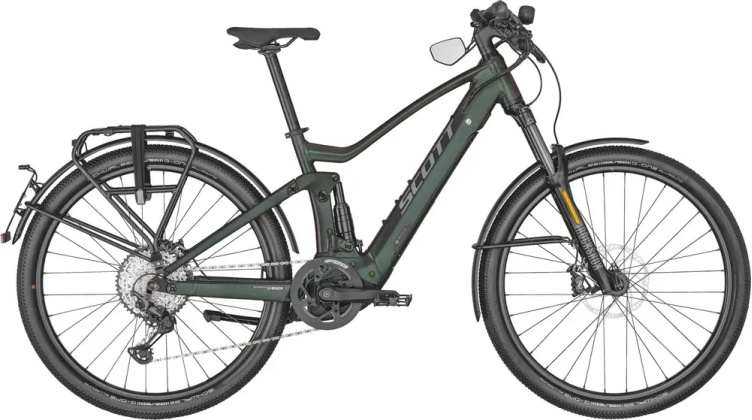

2022 Scott Axis eRIDE FS Speed A 29″ aluminum frame full suspension trail e-bike with upper mid-range components.
Build
| Frame |
Alloy S-XL=29″ / Virtual 4 link kinematic VLK 29″ / Boost 148x12mm 140mm travel / Bosch Integrated Battery Range Booster Ready Tapered Headtube BB Standard:Â Bosch, Press Fit |
|---|---|
| Fork |
Rock Shox Recon Silver Air / Tapered / S-XL 29″/ 140mm Travel / Maxle Lite / Remote Lock Out |
| Rear Shock |
X-Fusion NUDE Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control -Descend Reb. Adj. Travel 130-85-Lockout / 185X50mm |
| Bottom Bracket |
Bosch, press-fit |
| Headset |
Syncros FL2.0 Press Fit E2 / Tapered 1.5″-1 1/8″ OD 50/62mm / ID 44/56mm |
| Stem |
Syncros FL3.0 with front Light mount and Kiox mount |
| Handlebar |
Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise Syncros Lock On Grip |
| Saddle |
Selle Royale Essenza |
| Seatpost |
Syncros FL3.0 / 31.6 |
| Pedals |
VP VPE-506 |
Groupset
| Rear Derailleur |
Shimano XT 12 Speed |
|---|---|
| Front Derailleur |
SCOTT Chainguide |
| Crank |
FSA CK-745 IS GEN4 MTB 170MM |
| Shifters |
Shimano Deore Trigger SL-M6100RA |
| Cassette |
Shimano CS-M7100-12 10-51T 12S |
| Chain |
KMC E12S |
| Brakes |
Magura MT5E 203/F and 203/R rotor |
Wheels
| Rims |
Syncros MAXX Disc / 32H Tubeless ready |
|---|---|
| Spokes |
Sapim double butted |
| Front Hub |
Formula DC-711 / 15x110mm |
| Rear Hub |
Formula EMSL-148S / Boost 12x148mm |
| Tires |
Schwalbe G-One Allround Performance 29×2.25″ Wired |
Electric Components
| Motor |
Bosch Performance Speed |
|---|---|
| Battery |
PowerTube 625Wh |
| Remote |
Kiox Display |
| Charger |
4A Charger |
