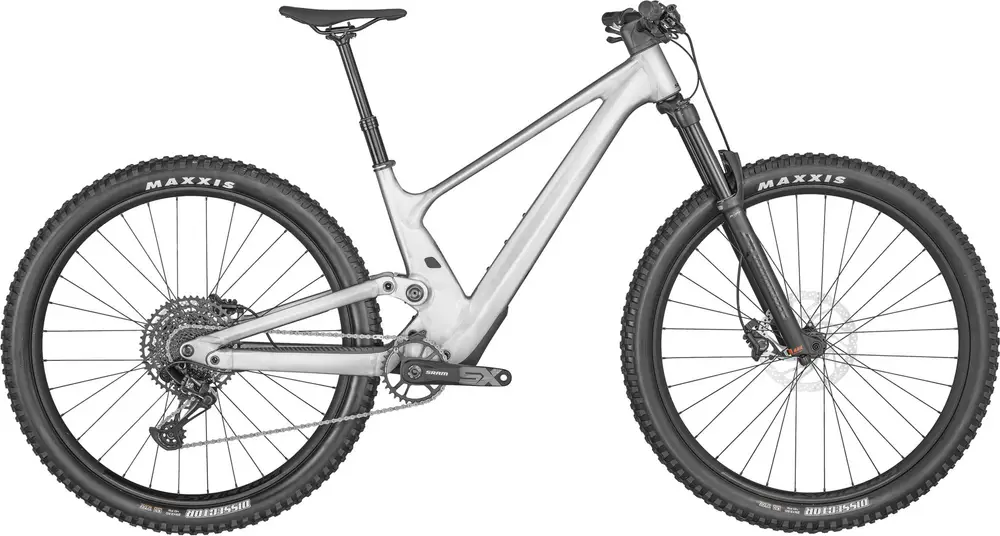

2023 Scott Genius 940 A 29″ aluminum frame full suspension enduro bike with upper mid-range components.
Build
| Frame |
Genius Alloy 6061 Integrated Suspension Technology Virtual 4 Link kinematic / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline BB Standard:Â BB86/BB92, Press Fit |
|---|---|
| Fork |
Marzocchi Z2 Air Rail 3-Modes / 15x110mm QR axle / tapered steerer 44mm offset / Reb. Adj. / Lockout / 150mm travel |
| Rear Shock |
X-Fusion NUDE 5 RLX Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Reb. Adj. Travel 150-100-Lockout / T185X55mm |
| Bottom Bracket |
SRAM DUB PF 92 MTB Wide / shell 41x92mm |
| Headset |
Syncros – Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB |
| Stem |
Syncros AM 2.0 Syncros Cable Integration System 4° rise / 6061 Alloy / 31.8mm / 1 1/8″ |
| Handlebar |
Syncros Hixon 2.0 Alloy 6061 D.B. 12mm Rise / back sweep 8° / 780mm Syncros Endurance lock-on grips |
| Saddle |
Syncros Tofino 2.5 Regular |
| Seatpost |
Syncros Duncan Dropper Post 31.6mm / S size 130mm / M size 150mm / L & XLsize 170mm |
Groupset
| Rear Derailleur |
SRAM NX Eagle 12 Speed |
|---|---|
| Crank |
SRAM SX Eagle DUB 55mm CL / 32T |
| Shifters |
SRAM SX Eagle Trigger |
| Cassette |
SRAM SX-PG1210 / 11-50 T |
| Chain |
SRAM CN SX Eagle |
| Brakes |
Shimano MT501 Disc |
Wheels
| Rims |
Syncros X-30S / 32H / 30mm / Sleeve Joint |
|---|---|
| Spokes |
Stainless Black 15G / 1.8mm |
| Front Hub |
Formula CL-811 / 15x110mm |
| Rear Hub |
Formula CL-148S / 12x148mm |
| Tires |
Maxxis Dissector / 2.6″ / 60TPI Foldable Tubeless Ready / EXO |
| Disk Rotors |
Shimano SM-RT30 CL / 203/F and 180/R |
