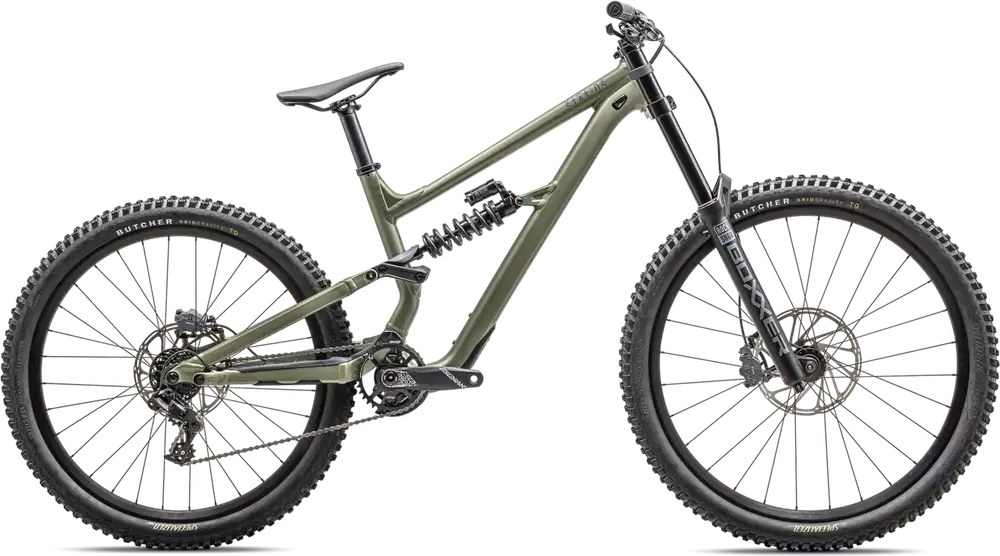

Specialized STATUS 2 170 DH 2024 Overview
Build
| Frame |
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel BB Standard:?BSA, 73mm, Threaded Hanger Standard:?UDH Color:?Satin Metallic Spruce / Purple Haze |
|---|---|
| Fork |
RockShox BoXXer 29, Charger 3 RC damper, adjustable low-speed compression, adjustable rebound, 20x110mm thru-axle, 44mm offset, 180mm of travel Travel:?180mm Spring Type:?Air |
| Shock |
RockShox Super Deluxe Select Coil, external rebound adjust, hydraulic bottom out, 230×62.5mm Travel:?170mm Spring Type:?Coil |
| Bottom Bracket |
SRAM DUB Threaded Wide |
| Stem |
Descendant 35mm Direct Mount Stem, 50mm length |
| Handlebar |
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S2: 780mm, S3-S5: 800mm |
| Saddle |
Body Geometry Henge DH, hollow Cro-Mo rails, 130mm |
| Seatpost |
Specialized 2-bolt head, forged alloy, 5mm offset, micro-adjust, 34.9mm Type:?Rigid |
| Grips |
Deity Lockjaw |
Groupset
| Rear Derailleur |
SRAM GX DH, 7-speed, trigger |
|---|---|
| Crank |
SRAM DESCENDANT DH, DUB, alloy, Direct, 34T ring, 55mm chainline, 165mm |
| Shifters |
SRAM GX DH, trigger, 7-speed |
| Cassette |
SRAM GX DH, 7-speed, 11-24t |
| Chain |
SRAM PC1110 w/ Powerlink |
| Brakes |
Front: SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm, Rear: SRAM DB MVN BRZ SJ BDPA DIR Type:?Hydraulic Disc |
Wheels
| Rims |
Roval Alloy DH, 28mm internal width, tubeless ready. Front: 29″, 28H, Rear: 27.5″, 32H |
|---|---|
| Spokes |
DT Swiss Industry |
| Front Hub |
Alloy, sealed cartridge bearings, 20x110mm, 28h |
| Rear Hub |
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
| Tires |
Front: Butcher, GRID GRAVITY casing, GRIPTON T9 compound, 2Bliss Ready, 29×2.3″, Rear: Butcher, GRID GRAVITY casing, GRIPTON T9 compound, 2Bliss Ready, 27.5×2.3″ |
