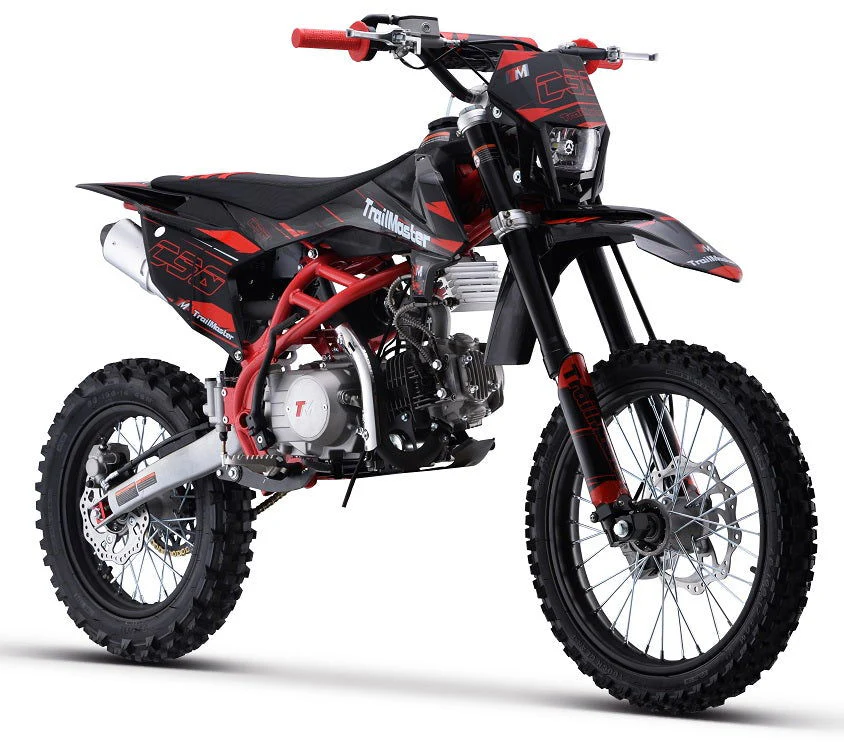

TrailMaster C50 150cc Gas Dirt Bike 4-Speed

TrailMaster C50 150cc Gas Dirt Bike, 4-Speed Manual Clutch (17/14) Wheels

The TrailMaster C50 C50 is a great mid-size dirt bike. It has a high performance 145cc 4 stroke 9.1hp engine with electric & kick start and a top speed of around 55 MPH and a seat height of 33.5″. It is available in red, green, and orange colors. The TM C50 features a 4-speed manual transmission with front and rear disc brakes and inverted front shocks!.

The TrailMaster C50 bikes full on motocross ergonomics and race suspension system make handling feel natural and unforced, and help it navigate over almost any type of terrain. Electronic CDI ignition makes kick starting effortless, keeps the bike running smoothly in all gears and provides a broad, even power band. And at only 172 pounds, the 145cc engine can propel the motorcycle to speeds of 55 miles per hour.

The TrailMaster C50 150cc Gas Dirt Bike 4-Speed provides a brilliant blend of moderate power and full manual control for ambitious riders stepping up from automatic bikes. The TrailMaster C50 features a potent 150cc engine and a precise 4-speed manual transmission. This setup allows riders to master the crucial art of clutch operation and maximize the bike’s power response on varied terrain types. It stands as a durable and highly capable machine for trail riders looking to seriously hone their full manual riding skills.

Engine

• Engine Type ZM-Single Cylinder, 4-Stroke, Oil Cooling
• Displacement 145 ml
• Max Power 6.8 /8500 (1+5%) kw/r/min
• Max Torque 11/5500 (1+5%) N.m/r/min
• Compression Ratio 9.0:1
• Bore and Stroke 56.5 × 57.8 (mmxmm)
• Shift Type N-1-2-3-4, Four-Gear Manual Shift
• Start Type Kick Start
• Ignition CDI
• Min. Fuel Consumption: ≤367g/kw.h
• Engine Oil #: SJ-5W/40
• Transmission Chain Drive; #428 & 110L Chain, 14/41T

Size Data

• Overall Size (L x W x H) 71.3″*28.9″*43.3″(1810*735*1100MM)
• Wheelbase 49.8″ (1265MM)
• Seat Height 33.5″ (850MM)
• Ground Clearance 13″ (330MM)
• Fuel Capacity 4.5 L/1.2 Gal.
• Tires FT: 70/100-17 – RR: 90/100-14 Knobby tires
• Wheels Steel 1.6 x 17″ / 1.85 x 14″ Rims, DCA Hubs

Frame/Suspension/Brake System

• Frame Twin Girders Steel Tube Frame
• Front Fork Inverted 45*48-735mm Forks, Non-Adjustable
• Rear Shock @ 10*@ 11*310mm, Spring Per-load
• Swing-Arm Steel Tube 14inch
• Handlebar Steel Crossbar ,L=720mm; Dia=22mm
• Front Brake Hydraulic Twin Piston Caliper, 220mm Disc
• Rear Brake Hydraulic Single Piston Caliper, 190mm Disc
• Exhaust Steel Pipe with catalyst converter (EPA Standard)
• Brake & Clutch Lever Foldable
• Seat Ribbed TrailMaster Seat
• Headlight LED
• Packing and Loading
• Packing Size(inch) 62.6×14.8×29.9 inch
• N.W/LBS 172 LBS
• G.W/LBS 203 LBS
