Description

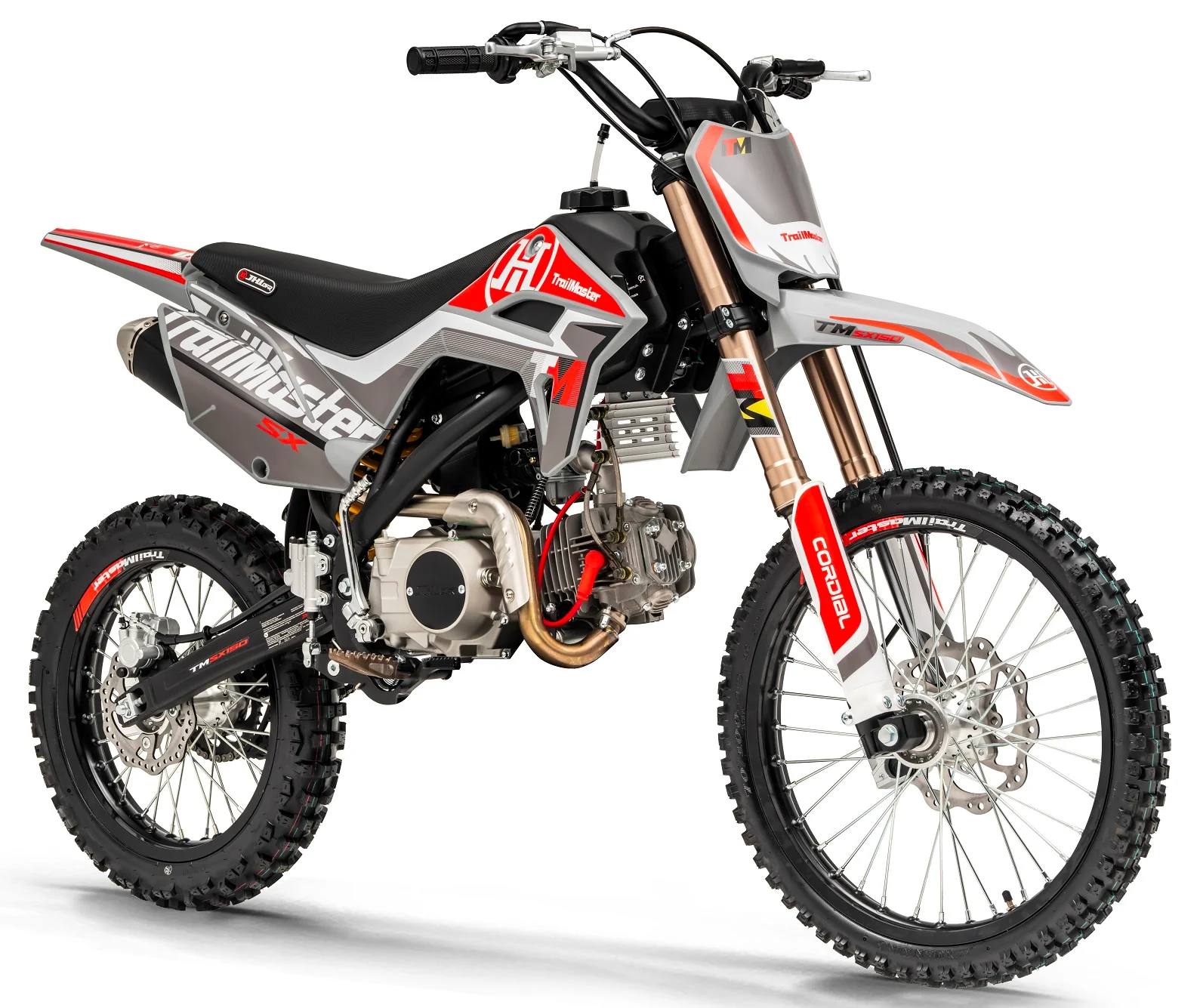

TrailMaster SX150 Pro Series Dirt Bike, Electric Start, 4-Speed Manual, Dual Disc Brakes, (19/16) Wheels

The TrailMaster SX150 Pro Series Dirt Bike, a collaboration between TrailMaster and JHL Offroad, boasts an advanced Zhongshen 140cc 4-stroke engine that delivers 6.8 horsepower with both a kick start and an electric start option. With a slim weight of 189lbs and 19/16 wheels, this mid-size dirt bike offers high performance and reliability. Available in red, blue, and green, the SX150 features a 4-speed manual transmission and front and rear disc brakes. Its seat height of 32.7″ and inverted front shock enhance the rider’s experience.

The TrailMaster SX150 JHL Pro-Series line boasts standard premium items such as both electric and kick start options, a 140cc oil cooling engine for powerful performance, an after-market Nibbi PE22 performance carburetor for optimal function, an innovative frame design for a smoother ride, a high-performance inverted front shock absorber, and a 33″ seat perfect for groups of wide riders. Enjoy a wide and non-slip seat for comfortable riding, a nitrogen air gas rear shock absorber with aluminum linkage, a performance stainless steel muffler, an alloy handlebar, upper and lower triple clamps, foldable handle levers, reinforced alloy rims and hubs, 19″ front and 16″ rear Yuanxin Tires, and superior quality front and rear disc brakes.

The TrailMaster SX150 Pro Series Dirt Bike Electric Start delivers significant engine power housed within a mid-sized, high-specification chassis. The TrailMaster SX150 Pro Series boasts a high-torque 150cc engine with the essential convenience of electric start. This model is strategically designed for experienced and demanding riders who seek a maximized power-to-weight ratio and top-tier components for aggressive handling, quick acceleration, and total confidence on challenging off-road circuits.

SpecificationDetails
Engine Type140cc, Single cylinder, four stroke, air-cooling / Oil-cooled
Displacement140 ml
Max Power6.8/7500 (11.5%)
Max Torque9.7/5500 (1÷1.5%)
Compression Ratio8.8:1
Shift TypeFour gear, non-circulate gear
Start TypeElectric / Kick Start
IgnitionCDI
Min. Fuel Consumption≤367g/kw.h
Minimum Turning Radius1900 mm
Lubricant TypeSF15W/40
TransmissionChain Drive
Overall Size (L × W × H)71.31 × 29.16 × 43.34 Inch / 1810 × 740 × 1100 mm
Wheelbase49.25 Inch / 1250 mm
Seat Height32.70 Inch / 830 mm
Ground Clearance13.26 Inch / 340 mm
Fuel Capacity1.56 Gal. / 6 L
WheelsAlloy 19/16 Rims, Alloy Hubs
TiresYUANXING FT: 70/100-19 — RR: 90/100-16
FrameHigh-quality Steel Frame
Front ForkInverted, non-Adjustable
Rear ShockAlloy U&D connector, Non-Adjustable
Upper and Lower Connecting BoardAlloy
HandlebarsAlloy and Foldable
Front BrakeDisc
Rear BrakeDisc
ExhaustStainless Steel
Packing Size63.82 × 17.92 × 33.49 Inch / 1620 × 455 × 850 mm
N.W / LBS189.2 LBS / 86 KGS
G.W / LBS237.6 LBS / 108 KGS
