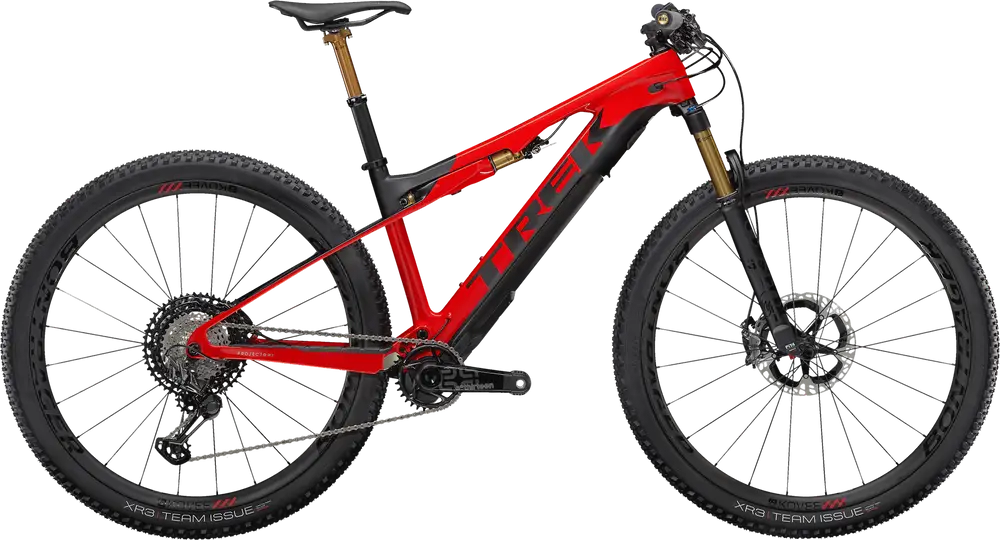

2022 Trek E-Caliber 9.9 XTR Gen 2 A 29″ carbon frame full suspension crosscountry e-bike with ultra high-end components.
Build
| Frame |
OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel Tire Clearance:Â 2.4″ Colors:Â Gloss Radioactive Red / Matte Black; Carbon Blue Smoke; Gloss Alpine Navy Smoke / Trek White; Marigold to Radioactive Red Fade |
|---|---|
| Fork |
Fox Factory 34 Factory Step-Cast, Float EVOL air spring, FIT4 2-position damper, dual remote lockout, tapered steerer, 44mm offset, Kashima Coat, Boost110, 15mm Kabolt axle, 120mm travel |
| Rear Shock |
Trek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235mm x 32.5mm |
| Headset |
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8” top, 1.5” bottom |
| Stem |
Size: S, M, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 60mm length; Size: L, XL, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 70mm length |
| Handlebar |
Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width |
| Saddle |
Bontrager Verse Pro, carbon rails, 145mm width |
| Seatpost |
Fox Transfer SL, 100mm travel, internal routing, 31.6mm |
| Grips |
ESI Chunky |
Groupset
| Rear Derailleur |
Shimano XTR M9100, Shadow Plus, long cage, 51T max cog |
|---|---|
| Crank |
E*thirteen E*spec Race Carbon, 32T, 175mm length |
| Shifters |
Shimano XTR M9100, 12 speed |
| Cassette |
Shimano XTR M9101, 10-51, 12 speed |
| Chain |
Shimano Dura-Ace/XTR M9100, 12 speed |
| Brakes |
Shimano XTR M9120 4-piston hydraulic disc |
Wheels
| Rims |
Front: Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, centerlock, Boost110, 15mm thru axle, Rear: Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, DT Swiss 54T engagement, centerlock, SRAM XD driver, Boost148, 12mm thru axle |
|---|---|
| Tires |
Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29×2.40” |
| Disk Rotors |
Size: S, M, L, XL, Shimano MT900, 203mm, centerlock; Size: S, M, L, XL, Shimano EM910, 180mm, centerlock |
Electric Components
| Motor |
Fazua Ride Trail 50 motor |
|---|---|
| Battery |
Fazua Evation battery, 250Wh |
| Charger |
Fazua Evation charger, 90-120V |
