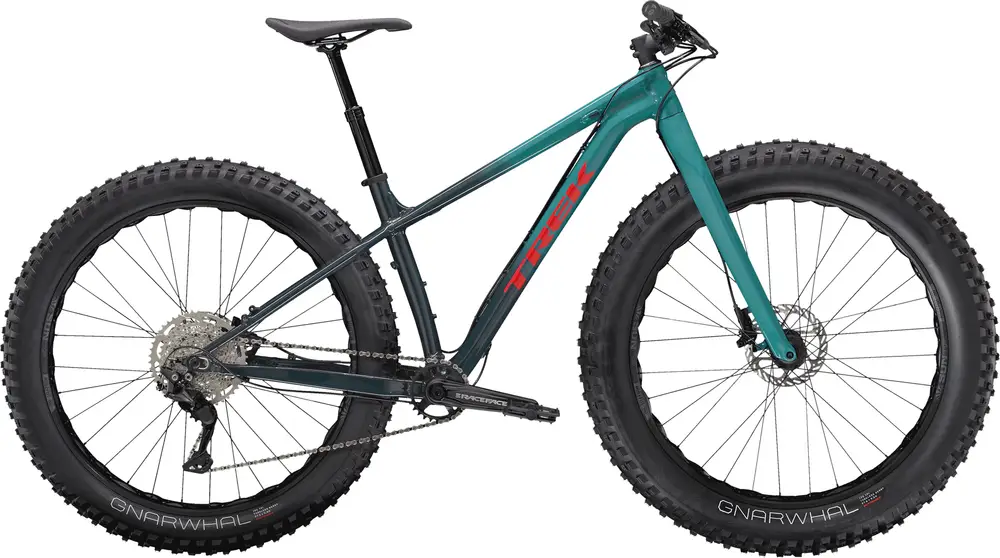

2022 Trek Farley 5 A 27.5″ aluminum frame rigid fat bike with upper mid-range components.
Build
| Frame | Alpha Platinum Aluminum, tapered head tube, internal derailleur & dropper post routing, rack mounts, 197x12mm adjustable horizontal sliding dropouts BB Standard:Â BB86/BB92, 121mm, Press Fit Tire Clearance:Â 4.5″ Color:Â Nautical Navy to Teal Fade |
|---|---|
| Fork | Bontrager Haru, tapered alloy steerer, OCLV Carbon lowers, 490mm axle-to-crown, 15x150mm thru axle |
| Bottom Bracket | Race Face, 121mm, PressFit |
| Headset | FSA IS-2, 1-1/8” top, 1.5” bottom |
| Stem | Size: S, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: XL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length |
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Saddle | Bontrager Arvada, steel rails, 138mm width |
| Seatpost | Size: S, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: M, TranzX JD-YSP18, 120mm travel, internal routing, 31.6mm, 403mm length; Size: L, XL, TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
Groupset
| Rear Derailleur | Shimano Deore M5120, long cage |
|---|---|
| Crank | Size: S, Race Face Ride, 28T steel ring, 170mm length; Size: M, L, XL, Race Face Ride, 28T steel ring, 175mm length |
| Shifters | Shimano Deore M4100, 10 speed |
| Cassette | Shimano Deore M4100, 11-46, 10 speed |
| Chain | KMC X10, 10 speed |
| Brakes | SRAM Level hydraulic disc |
Wheels
| Rims | SUNRingle Mulefut 80 SL, 32-hole cutout |
|---|---|
| Front Hub | Bontrager alloy, sealed bearing, 6-bolt, 15x150mm thru axle |
| Rear Hub | Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano 10 freehub, 197x12mm thru axle |
| Tires | Size: S, M, L, XL, Bontrager Gnarwhal Team Issue, Tubeless Ready, Inner Strength sidewalls, studdable, aramid bead, 120 tpi, 27.5×4.50”; Size: S, M, Bontrager Gnarwhal Team Issue, Tubeless Ready, Inner Strength sidewalls, studdable, aramid bead, 120 tpi, 27.5×3.80” |
| Disk Rotors | Avid G2 CleanSweep, 6-bolt, 160mm |
