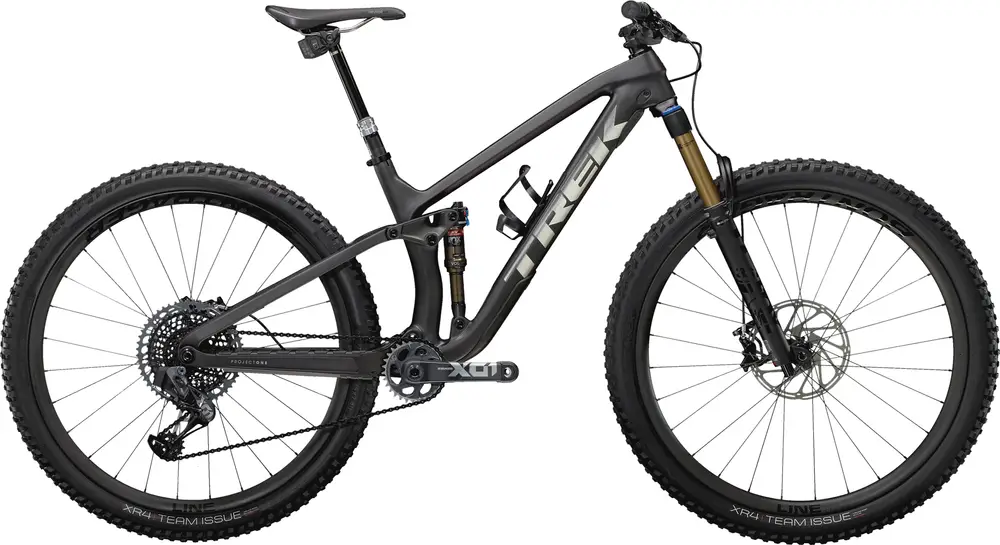

2022 Trek Fuel EX 9.9 X01 AXS A 27.5″ / 29″ carbon frame full suspension trail bike with ultra high-end components.
Build
| Frame | Carbon frame BB Standard:Â BB86/BB92, Press Fit Tire Clearance:Â 2.6″ Colors:Â Raw Carbon / Rage Red; Lithium Grey / Factory Orange; Matte Carbon Smoke |
|---|---|
| Fork | Fox Factory 36, Float EVOL air spring, GRIP2 damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel |
| Rear Shock | Size: XS, S, Fox Factory Float EVOL, RE:aktiv with Thru Shaft 3-position damper, Kashima Coat, tuned by Trek Suspension Lab, 210×52.5mm; Size: S, M, ML, L, XL, Fox Factory Float EVOL, RE:aktiv with Thru Shaft 3-position damper, Kashima Coat, tuned by Trek Suspension Lab, 210x55mm |
| Bottom Bracket | SRAM DUB, 92mm, PressFit |
| Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8” top, 1.5” bottom |
| Stem | Size: XS, S, Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 35mm length; Size: M, ML, L, XL, Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width |
| Saddle | Bontrager Arvada, austenite rails, 138mm width |
| Seatpost | Size: XS, S, RockShox Reverb AXS, 100mm travel, wireless, 31.6mm, 340mm length; Size: M, ML, RockShox Reverb AXS, 150mm travel, wireless, 31.6mm, 440mm length; Size: L, XL, RockShox Reverb AXS, 170mm travel, wireless, 31.6mm, 480mm length |
| Grips | Bontrager XR Trail Elite, alloy lock-on |
Groupset
| Rear Derailleur | SRAM X01 Eagle AXS |
|---|---|
| Crank | Size: XS, S, SRAM X01 Eagle carbon, DUB, 30T alloy ring, Boost (52mm chainline), 170mm length; Size: M, ML, L, XL, SRAM X01 Eagle carbon, DUB, 30T alloy ring, Boost (52mm chainline), 175mm length |
| Shifters | SRAM Eagle AXS, wireless, 12 speed |
| Cassette | Size: XS, S, M, ML, L, XL, SRAM XG-1295 Eagle, 10-52, 12 speed; Size: XS, S, M, ML, L, XL, SRAM XX1 Eagle, 12 speed |
| Chain | SRAM XX1 Eagle, 12 speed |
| Brakes | SRAM G2 Ultimate hydraulic disc, carbon levers |
Wheels
| Rims | Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready |
|---|---|
| Tires | Size: XS, S, M, ML, L, XL, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29.×2.40”; Size: XS, S, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5×2.60”; Size: S, M, ML, L, XL, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29×2.60” |
| Disk Rotors | Size: XS, S, M, ML, L, XL, SRAM CenterLine, 6-bolt, round edge, 180mm; Size: M, ML, L, XL, SRAM CenterLine, 6-bolt, round edge, 200mm |
