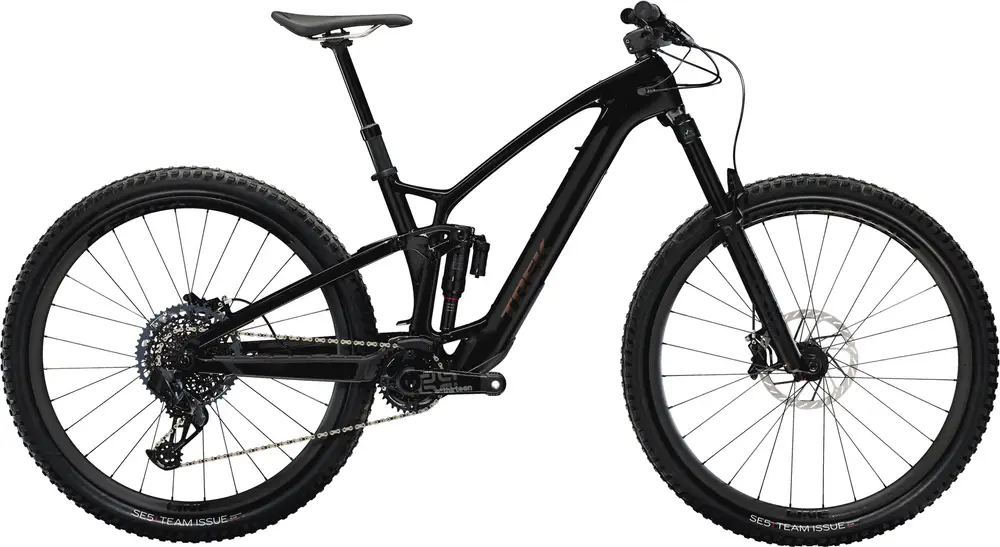

2023 Trek Fuel EXe 9.8 GX AXS A 29″ carbon frame full suspension trail e-bike with high-end components.
Build
| Frame | OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel Colors:Â Deep Smoke; Mulsanne Blue; Satin Baja Yellow |
|---|---|
| Fork | RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel |
| Rear Shock | RockShox Super Deluxe Select+ RT, 205mm x 60mm |
| Saddle | Bontrager Arvada, austenite rails, 138mm width |
| Seatpost | Size: S, Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length; Size: M, Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length; Size: L, Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length; Size: XL, Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
Groupset
| Rear Derailleur | SRAM GX Eagle AXS |
|---|---|
| Crank | SRAM X-SYNC, 32T, alloy |
| Shifters | SRAM GX Eagle AXS, 12 speed |
| Cassette | SRAM Eagle XG-1275, 10-52, 12 speed |
| Chain | SRAM GX Eagle, 12 speed |
| Brakes | SRAM Code R 4-piston hydraulic disc |
Wheels
| Rims | Bontrager Line Elite 30, Tubeless Ready |
|---|---|
| Front Hub | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
| Rear Hub | Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12mm thru axle |
| Tires | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50” |
| Disk Rotors | SRAM 6-bolt, 200mm |
Electric Components
| Motor | TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power |
|---|---|
| Battery | TQ 360Wh |
