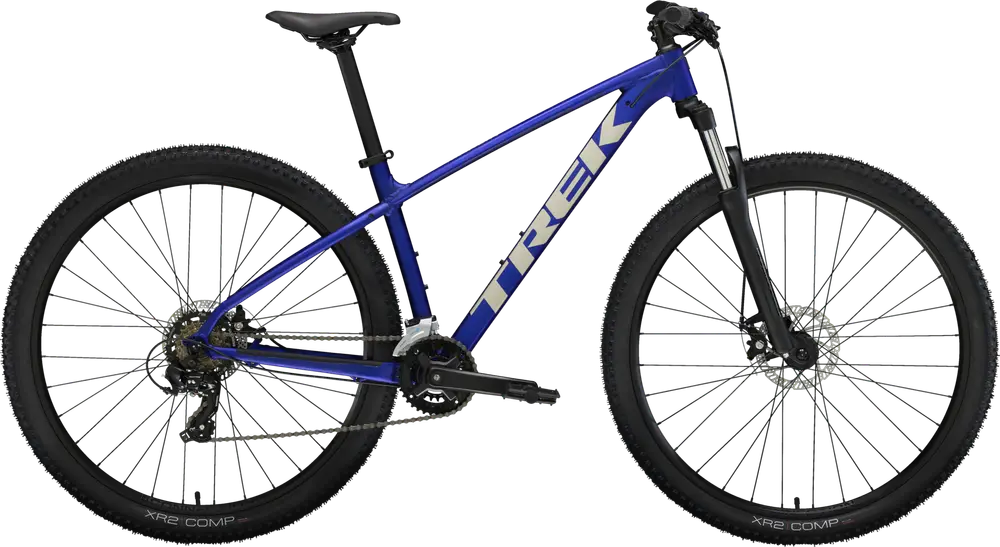

Trek Marlin 4 Gen 2 XC Trail Hardtail Alloy Entry Level 2025

Name: Trek Marlin 4 Gen 2 XC Trail Hardtail Alloy Entry Level 2025
Brand: Trek
Price: 405.00 USD
Availability: InStock

in Trek

US $405.00

Available in stock

Compare Wishlist

Category: Other Vehicle

Description
Reviews (0)

Description

Trek Marlin 4 Gen 2 Bike 2025 Overview

Build

Frame	Size: XS, S, Alpha Silver Aluminum, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR; Size: M, ML, L, XL, Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR BB Standard:?BSA, 73mm, Threaded Tire Clearance:?2.2″ Colors:?Dnister Black; Matte Hex Blue; Crimson
Fork	Size: XS, SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5” wheel, 100mm QR, 80mm travel; Size: S, SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5” wheel, 100mm QR, 100mm travel; Size: M, ML, L, XL, SR Suntour XCE 28, coil spring, preload, 46mm offset for 29” wheel, 100mm QR, 100mm travel Travel:?100mm Spring Type:?Coil
Bottom Bracket	VP BC73, 73mm, threaded cartridge
Headset	Semi-integrated, 1-1/8”
Stem	Size: XS, S, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: M, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: ML, L, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: XL, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 80mm length
Handlebar	Size: XS, S, Bontrager alloy, 31.8mm, 5mm rise, 690mm width; Size: M, ML, L, XL, Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Saddle	Bontrager Verse Short, stainless steel rails
Seatpost	Size: XS, S, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: M, Bontrager alloy, 31.6mm, 12mm offset, 360mm length; Size: ML, L, XL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length Type:?Rigid
Pedals	VP-536 nylon platform
Grips	Bontrager XR Endurance Comp, lock-on

Groupset

Rear Derailleur	Shimano Tourney TY300
Front Derailleur	Shimano Altus M315, 34.9mm clamp, top swing, dual pull
Crank	Size: XS, S, M, ProWheel TM-CY10, 36/22, 170mm length; Size: ML, L, XL, ProWheel TM-CY10, 36/22, 175mm length
Shifters	Size: XS, S, M, ML, L, XL, Shimano EF500, 8 speed; Size: XS, S, M, ML, L, XL, Shimano EF500, 7 speed
Cassette	Shimano TZ500, 14-34, 7 speed
Chain	KMC Z7, 7 speed
Brakes	Size: XS, S, M, ML, L, XL, Tektro MD-M280 mechanical disc; Size: XS, S, M, ML, L, XL, Tektro MD-M281 mechanical disc; Size: XS, S, M, ML, L, XL, Tektro MD-M280 mechanical disc, 160mm rotor; Size: XS, S, M, ML, L, XL, Tektro MD-M281 mechanical disc, 160mm rotor Type:?Mechanical Disc

Wheels

Rims	Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Spokes	14g stainless steel, black
Front Hub	Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear Hub	Formula DC-31, alloy, 6-bolt, 6/7/8 speed freewheel, 135x5mm QR
Tires	Size: XS, S, Bontrager XR2 Comp, wire bead, 30 tpi, 27.5×2.20”; Size: M, ML, L, XL, Bontrager XR2 Comp, wire bead, 30 tpi, 29×2.20”
Disc Rotors	Size: XS, S, M, ML, L, XL, Tektro wave, 6-bolt, 160mm; Size: XS, S, M, ML, Tektro, 6-bolt, 160mm
