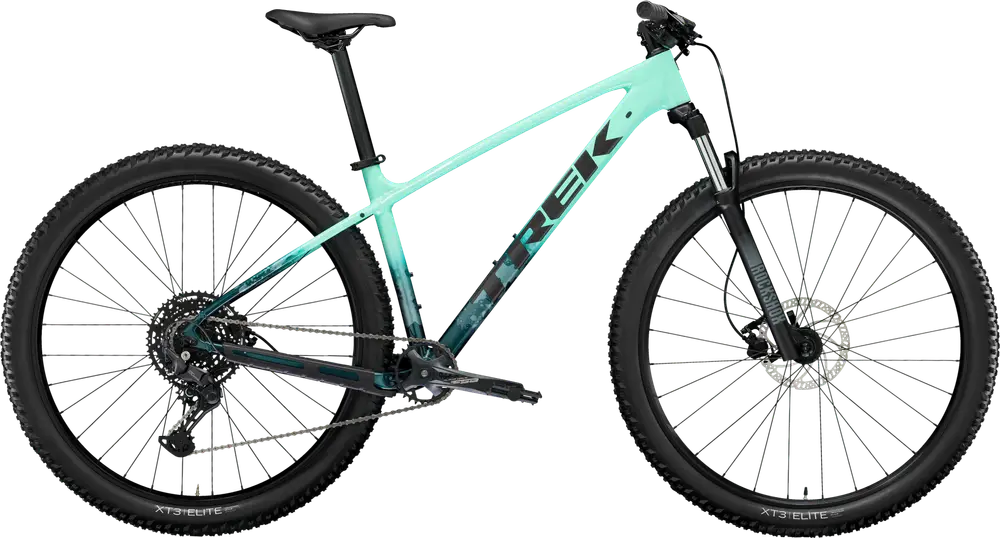

Trek Marlin 6 Gen 3 Bike 2025 Overview
Build
| Frame |
Size: XXS, XS, Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew; Size: S, M, ML, L, XL, XXL, Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew BB Standard:?BSA, 73mm, Threaded Tire Clearance:?2.4″ Colors:?Galactic Grey to Lithium Grey Fade; Lava; Rage Red to Deep Dark Blue Fade; Miami Green to Dark Aquatic Fade |
|---|---|
| Fork |
Size: XXS, RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5” wheel, 100mm QR, 80mm travel; Size: XS, S, RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5” wheel, 100mm QR, 100mm travel; Size: M, ML, L, XL, XXL, RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29” wheel, 100mm QR, 100mm travel Travel:?80mm Spring Type:?Coil |
| Bottom Bracket |
FSA, 73mm, threaded cartridge, 122.5mm spindle |
| Headset |
Semi-integrated, 1-1/8” |
| Stem |
Size: XXS, XS, S, Bontrager Comp, 31.8mm, 7 degree, 35mm length; Size: M, ML, L, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: XL, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: XXL, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length |
| Handlebar |
Size: XXS, XS, Bontrager alloy, 31.8mm, 5mm rise, 690mm width; Size: S, Bontrager alloy, 31.8mm, 15mm rise, 720mm width; Size: M, ML, L, XL, XXL, Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Saddle |
Bontrager Verse Short, stainless steel rails |
| Seatpost |
Size: XXS, Bontrager alloy, 31.6mm, 12mm offset, 300mm length; Size: XS, S, M, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: ML, L, XL, XXL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length Type:?Rigid |
| Pedals |
VP-536 nylon platform |
| Grips |
Bontrager XR Trail Comp, nylon lock-on |
Groupset
| Rear Derailleur |
Shimano CUES U6000 GS |
|---|---|
| Crank |
Size: XXS, XS, FSA Alpha Drive, 30T, 160mm length; Size: S, M, ML, FSA Alpha Drive, 30T, 170mm length; Size: L, XL, XXL, FSA Alpha Drive, 30T, 175mm length |
| Shifters |
Shimano U6000, 10 speed |
| Cassette |
Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed |
| Chain |
Shimano LG500, 9/10/11 speed |
| Brakes |
Size: XXS, XS, S, Tektro HD-M276 hydraulic disc, short reach; Size: M, ML, L, XL, XXL, Tektro HD-M275 hydraulic disc Type:?Hydraulic Disc |
Wheels
| Rims |
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve |
|---|---|
| Front Hub |
Formula DC-20, alloy, 6-bolt, 100mm ThruSkew |
| Rear Hub |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Tires |
Size: XXS, Bontrager XT3 Elite, Tubeless Ready, Inner Strength casing, wire bead, 60 tpi, 26×2.35”; Size: XS, S, Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60tpi, 27.5×2.35”; Size: XS, S, Maxxis IKON, tubeless ready, EXO casing, folding bead, 60tpi, 27.5×2.35”; Size: M, ML, L, XL, XXL, Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60tpi, 29×2.35”; Size: M, ML, L, XL, Maxxis IKON, tubeless ready, EXO casing, folding bead, 60tpi, 29×2.35” |
| Disc Rotors |
Tektro, 6-bolt, 160mm |
