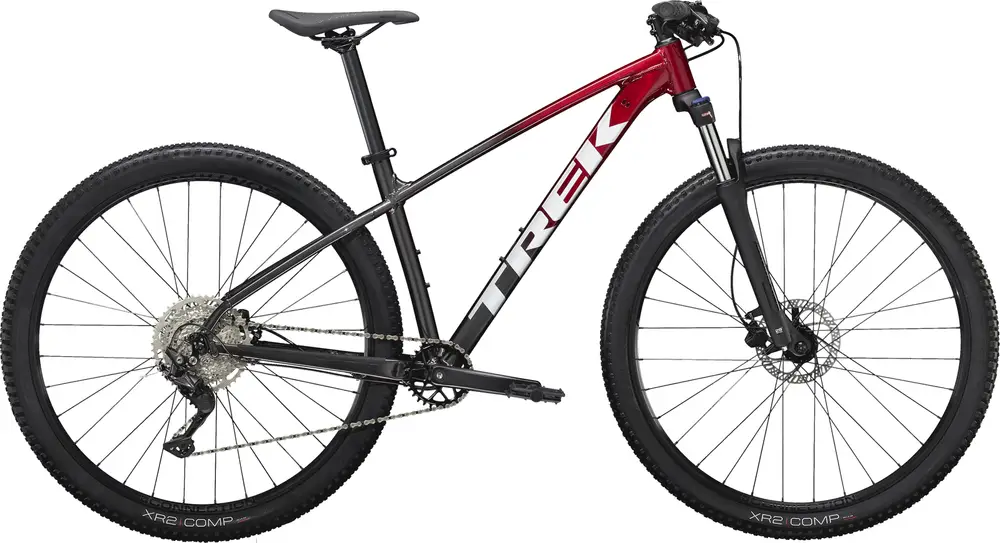

2023 Trek Marlin 7 Gen 2 A 27.5″ / 29″ aluminum frame hardtail crosscountry bike with upper mid-range components.
Build
| Frame |
Size: XS, S, Alpha Silver Aluminum, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR; Size: M, ML, L, XL, XXL, Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR BB Standard:Â BSA, 73mm, Threaded Tire Clearance:Â 2.2″ Colors:Â Matte Nautical Navy / Matte Anthracite; Marigold to Radioactive Red Fade; Gloss Miami Green |
|---|---|
| Fork |
Size: XS, RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5” wheel, 100mm QR, 80mm travel; Size: S, RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5” wheel, 100mm QR, 100mm travel; Size: M, ML, L, XL, XXL, RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29” wheel, 100mm QR, 100mm travel |
| Bottom Bracket |
FSA, 73mm, threaded cartridge, 122.5mm spindle |
| Headset |
Semi-integrated, 1-1/8” |
| Stem |
Size: XS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: ML, L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: XL, XXL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length |
| Handlebar |
Size: XS, Bontrager alloy, 31.8mm, 5mm rise, 690mm width; Size: S, M, ML, L, XL, XXL, Bontrager alloy, 31.8mm, 5mm rise, 720mm width |
| Saddle |
Bontrager Arvada, steel rails, 138mm width |
| Seatpost |
Size: XS, S, M, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: ML, L, XL, XXL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
| Grips |
Bontrager XR Trail Comp, nylon lock-on |
Groupset
| Rear Derailleur |
Shimano Deore M5120, long cage |
|---|---|
| Crank |
Size: XS, S, M, FSA Alpha Drive, 28T steel ring, Boost, 170mm length; Size: ML, L, XL, XXL, FSA Alpha Drive, 28T steel ring, Boost, 175mm length |
| Shifters |
Shimano Deore M4100, 10 speed |
| Cassette |
Shimano Deore M4100, 11-46, 10 speed |
| Chain |
KMC X10, 10 speed |
| Brakes |
Shimano MT200 hydraulic disc |
Wheels
| Rims |
Bontrager Connection, double-wall, 32-hole, 20mm width, Presta valve |
|---|---|
| Spokes |
14g stainless steel |
| Front Hub |
Formula DC-20, alloy, 6-bolt, 5x100mm QR |
| Rear Hub |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Tires |
Size: XS, S, Bontrager XR2 Comp, wire bead, 30 tpi, 27.5×2.20”; Size: M, ML, L, XL, XXL, Bontrager XR2 Comp, wire bead, 30 tpi, 29×2.20” |
| Disk Rotors |
Size: XS, S, M, ML, L, XL, XXL, Shimano RT26, 6-bolt,160mm; Size: L, XL, XXL, Shimano RT26, 6-bolt,180mm |
