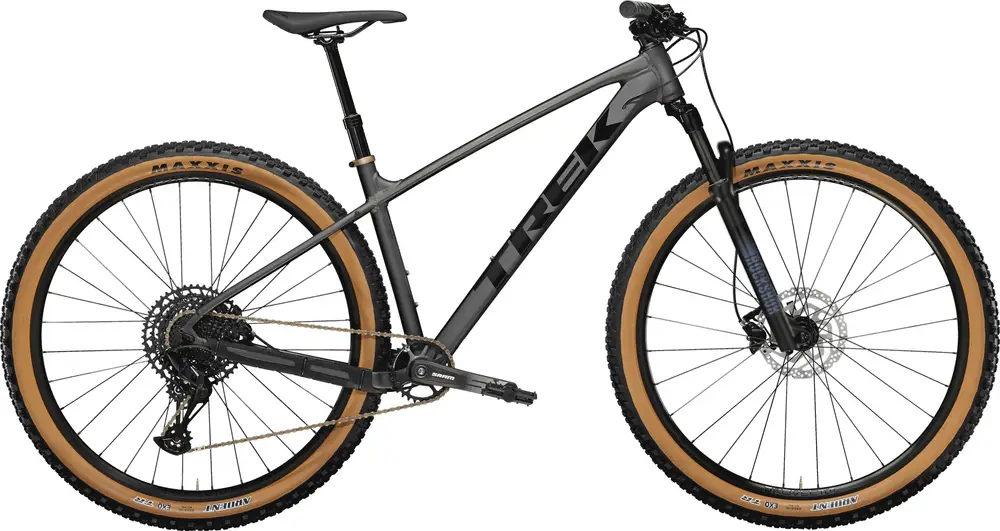

2023 Trek Marlin 8 Gen 3 A 26″ / 27.5″ / 29″ aluminum frame hardtail crosscountry bike with upper mid-range components.
Build
| Frame | Size: XXS, XS, S, M, ML, L, XL, XXL, Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew; Size: XXS, XS, Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew BB Standard:Â BSA, 73mm, Threaded Colors:Â Matte Dnister Black; Crimson |
|---|---|
| Fork | Size: XXS, RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 80 mm travel; Size: XS, S, RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 100 mm travel; Size: M, ML, L, XL, XXL, RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46 mm offset for 29″ wheel, 100 mm QR, 100 mm travel |
| Bottom Bracket | Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle |
| Stem | Size: XXS, XS, S, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 35 mm length; Size: M, ML, L, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length; Size: XL, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length; Size: XXL, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
| Handlebar | Size: XXS, XS, Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width; Size: S, Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width; Size: M, ML, L, XL, XXL, Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Size: XXS, XS, S, TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length; Size: M, TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length; Size: ML, L, XL, XXL, TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
Groupset
| Rear Derailleur | SRAM SX Eagle |
|---|---|
| Crank | Size: XXS, SRAM SX Eagle, 30T steel ring, 49 mm chainline, 155 mm length; Size: XS, S, M, SRAM SX Eagle, 30T steel ring, 49 mm chainline, 170 mm length; Size: ML, L, XL, XXL, SRAM SX Eagle, 30T steel ring, 49 mm chainline, 175 mm length |
| Shifters | SRAM SX Eagle, 12-speed |
| Cassette | SRAM PG-1210 Eagle, 11-50, 12-speed |
| Chain | SRAM SX Eagle, 12-speed |
| Brakes | Shimano MT200 hydraulic disc |
Wheels
| Rims | Size: XXS, XS, S, Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve; Size: M, ML, L, XL, XXL, Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
|---|---|
| Front Hub | Formula DC-20 LW, alloy, 6-bolt, 5×100 mm QR |
| Rear Hub | Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR |
| Tires | Size: XXS, Maxxis Ardent, tubeless, EXO casing, folding bead, 60tpi, 26×2.40″; Size: XS, S, Maxxis Ardent, tubeless, EXO casing, folding bead, 60tpi, 27.5×2.40″; Size: M, ML, L, XL, XXL, Maxxis Ardent, tubeless, EXO casing, folding bead, 60tpi, 29×2.40″ |
| Disk Rotors | Size: XXS, XS, S, M, ML, L, XL, XXL, Shimano RT26, 6-bolt,160 mm; Size: M, ML, L, XL, XXL, Shimano RT26, 6-bolt,180 mm |
