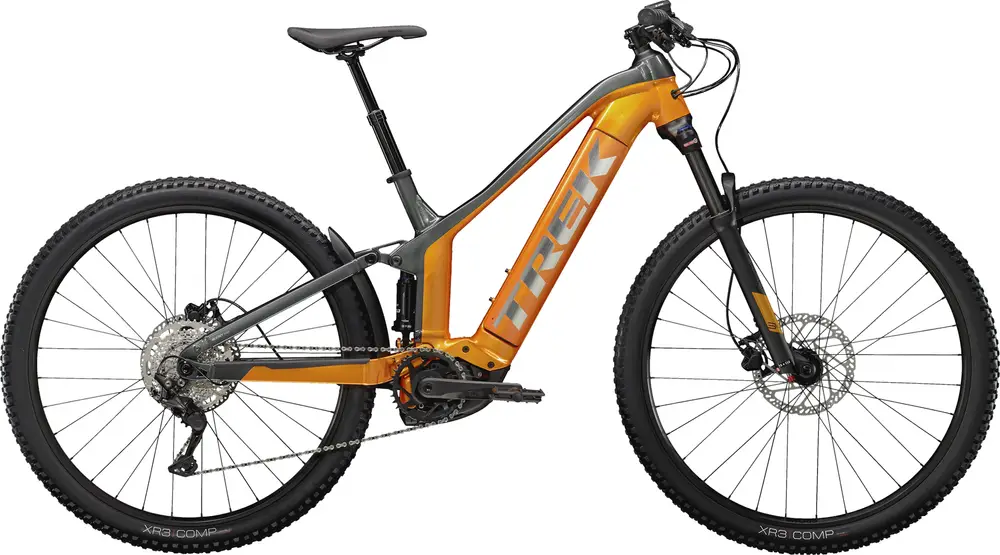

2022 Trek Powerfly FS 4 A 27.5″ / 29″ aluminum frame full suspension crosscountry e-bike with upper mid-range components.
Build
| Frame |
Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, internal routing, Motor Armor, magnesium rocker link, rack and fender mount, ABP, Boost148, 100mm travel BB Standard:Â Bosch, Press Fit Tire Clearance:Â 2.4″ Colors:Â Matte Gunmetal / Matte Black; Crimson / Lithium Grey; Purple Flip / Trek Black |
|---|---|
| Fork |
Size: XS, S, SR Suntour XCR 34, air spring, LO R damper, hydraulic lockout, tapered steerer, 41mm offset, oversized crown for eMTB, Boost110, 15mm bolt-on thru axle, 100mm travel; Size: M, L, XL, SR Suntour XCR 34, air spring, LO R damper, hydraulic lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm bolt-on thru axle, 120mm travel |
| Rear Shock |
SR Suntour Edge R, 190mm x 45mm |
| Bottom Bracket |
Bosch, press-fit |
| Headset |
FSA IS-2 |
| Stem |
Size: XS, S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, L, XL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length |
| Handlebar |
Bontrager alloy, 31.8mm, 15mm rise, 720mm width |
| Saddle |
Bontrager Arvada, steel rails, 138mm width |
| Seatpost |
Size: XS, S, M, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: L, XL, TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length |
| Grips |
Bontrager XR Trail Comp, nylon lock-on |
Groupset
| Rear Derailleur |
Shimano Deore M5120, long cage |
|---|---|
| Crank |
FSA Bosch CK-220, 36T ring, 165mm length |
| Shifters |
Shimano Deore M4100, 10 speed |
| Cassette |
Shimano Deore M4100, 11-46, 10 speed |
| Chain |
KMC X10, 10 speed |
| Brakes |
Tektro HD-M275 hydraulic disc |
Wheels
| Rims |
Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve |
|---|---|
| Spokes |
14g stainless steel |
| Front Hub |
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
| Rear Hub |
Bontrager Approved DC-3248, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12mm thru axle |
| Tires |
Size: XS, S, Bontrager XR3 Comp, wire bead, 30tpi, 27.5×2.35”; Size: M, XL, Bontrager XR3 Comp, wire bead, 30tpi, 29×2.30” |
| Disk Rotors |
Tektro, 6-bolt, 203mm |
Electric Components
| Motor |
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph or 32km/h max assist |
|---|---|
| Battery |
Bosch PowerTube 500Wh |
| Charger |
Bosch compact 2A, 100-240V, smart system |
