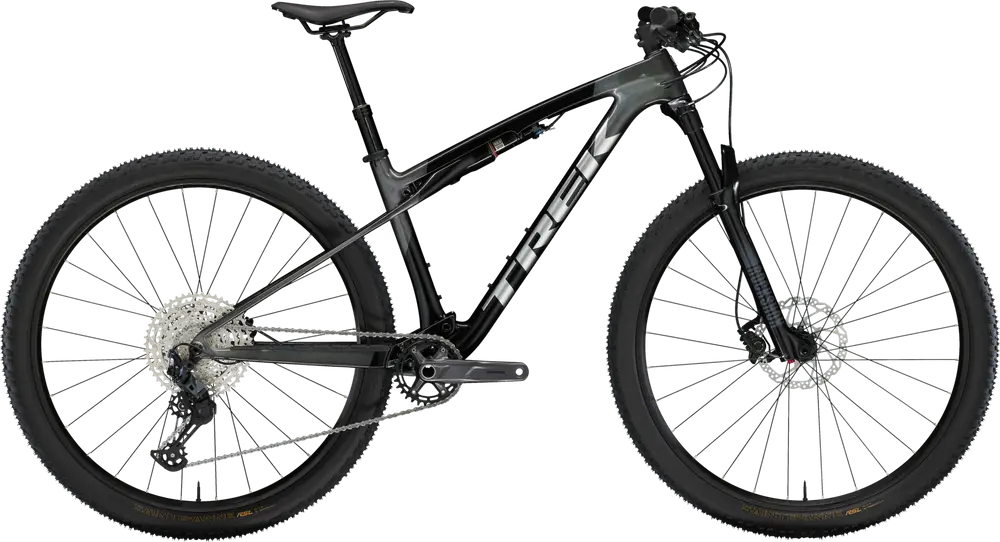

Trek Supercaliber SL 9.6 Gen 2 2024 Overview
Build
| Frame |
SL OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel BB Standard:?BB86/BB92, Press Fit Hanger Standard:?UDH Tire Clearance:?2.4″ Color:?Dark Prismatic |
|---|---|
| Fork |
RockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 110mm travel Travel:?110mm Spring Type:?Air |
| Shock |
Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper Travel:?80mm |
| Bottom Bracket |
Shimano MT500, 92mm, PressFit |
| Headset |
FSA IS-2, 1-1/8” top, 1.5” bottom |
| Stem |
Size: S, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: M, M/L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: XL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length |
| Handlebar |
Size: S, Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width; Size: M, M/L, L, XL, Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width |
| Saddle |
Bontrager Verse Comp, steel rails, 145mm width |
| Seatpost |
Size: S, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length; Size: M, M/L, Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6mm, 410mm length; Size: L, XL, Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 31.6mm, 450mm length Type:?Dropper |
| Grips |
Bontrager XR Trail Comp, nylon lock-on |
Groupset
| Rear Derailleur |
Shimano SLX M7100, long cage |
|---|---|
| Crank |
Size: S, M, Shimano MT512, 32T, 55mm chainline, 170mm; Size: M/L, L, XL, Shimano MT512, 32T, 55mm chainline, 175mm |
| Shifters |
Shimano Deore M6100, 12 speed |
| Cassette |
Shimano Deore M6100, 10-51, 12 speed |
| Chain |
Shimano Deore M6100, 12 speed |
| Brakes |
Shimano hydraulic disc, MT501 lever, MT500 caliper Type:?Hydraulic Disc |
Wheels
| Rims |
Front: Bontrager Kovee Comp 23, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29”, Rear: Bontrager Kovee Comp 23, Tubeless Ready, Shimano Microspline freehub, Rapid Drive 108, Boost148, 29” |
|---|---|
| Front Hub |
Shimano MT400, CenterLock, Boost110, 15 mm thru-axle |
| Rear Hub |
Shimano MT410B, CenterLock, Boost148, 12 mm thru-axle |
| Tires |
Frame: 29×2.40″, Fork: See manufacturer |
| Disc Rotors |
Size: S, M, M/L, L, XL, Shimano RT54, centerlock, 160mm; Size: S, M, M/L, L, XL, Shimano RT54, centerlock, 180mm |
