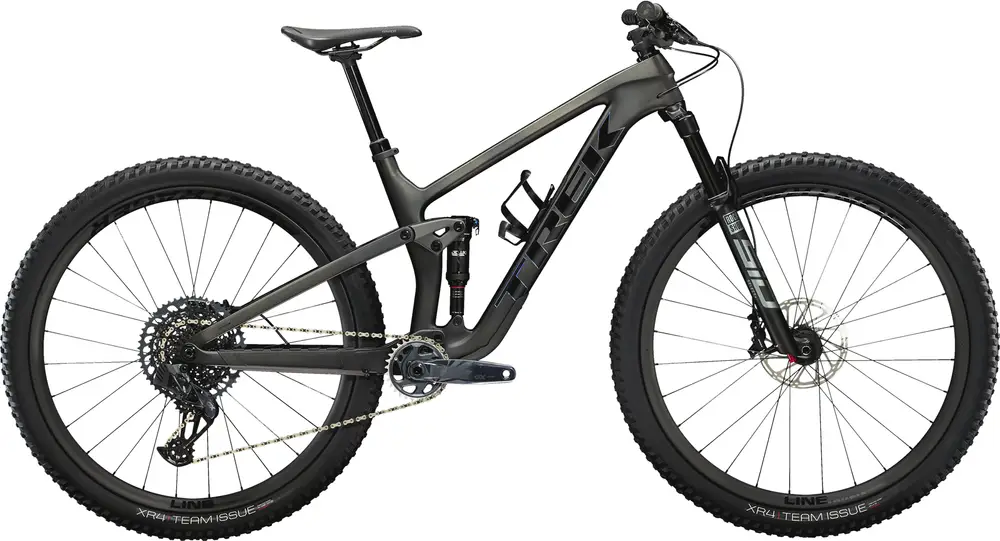

2022 Trek Top Fuel 9.8 GX AXS A 29″ carbon frame full suspension trail bike with high-end components.
Build
| Frame |
carbon frame BB Standard:Â BSA, 73mm, Threaded Tire Clearance:Â 2.5″ Colors:Â Matte Raw Carbon; Marigold to Red to Purple Abyss Fade; Carbon Red Smoke / Trek Black |
|---|---|
| Fork |
RockShox SID Select+, DebonAir spring, Charger 2 RL damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel |
| Rear Shock |
RockShox Deluxe Ulitmate RCT, 185mm x 50mm |
| Bottom Bracket |
SRAM DUB MTB Wide, 73mm, BSA threaded |
| Headset |
Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8” top, 1.5” bottom |
| Stem |
Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length |
| Handlebar |
Size: S, Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width; Size: M, M/L, L, XL, Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width |
| Saddle |
Bontrager Arvada, austenite rails, 138mm width |
| Seatpost |
Size: S, Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length; Size: M, M/L, Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length; Size: L, Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length; Size: XL, Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length |
Groupset
| Rear Derailleur |
SRAM GX Eagle AXS |
|---|---|
| Crank |
Size: S, M, M/L, L, SRAM GX Eagle, DUB MTB Wide, 30T, 55mm chainline, 170 length; Size: XL, SRAM GX Eagle, DUB MTB Wide, 30T, 55mm chainline, 175 length |
| Shifters |
SRAM GX Eagle AXS, 12 speed |
| Cassette |
SRAM Eagle XG-1275, 10-52, 12 speed |
| Chain |
SRAM GX Eagle, 12 speed |
| Brakes |
SRAM G2 RS 4-piston hydraulic disc |
Wheels
| Rims |
Bontrager Line Elite 30, Tubeless Ready |
|---|---|
| Front Hub |
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
| Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12mm thru axle |
| Tires |
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29.x2.40” |
| Disk Rotors |
Size: S, M, M/L, L, XL, SRAM CenterLine, 6-bolt, round-edge, 160mm; Size: S, M, M/L, L, XL, SRAM CenterLine, 6-bolt, round edge, 180mm |
