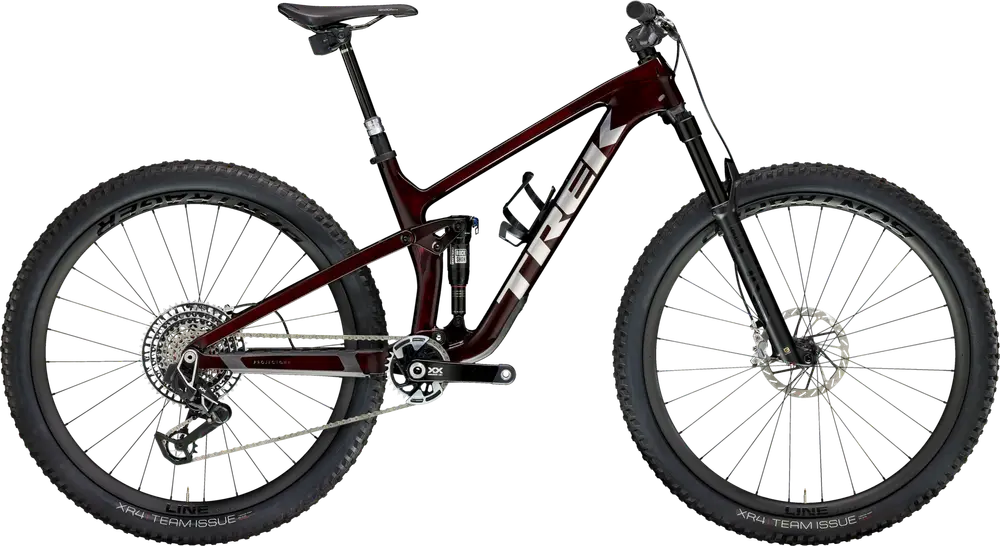

Trek Top Fuel 9.9 XX AXS T-Type Gen 3 2024 Overview
Build
| Frame |
OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel BB Standard:?BSA, 73mm, Threaded Hanger Standard:?UDH Tire Clearance:?2.5″ Color:?Pennyflake |
|---|---|
| Fork |
RockShox Pike Ultimate, DebonAir spring, Charger 3 RC2 damper, 44mm offset, Boost110, Maxle Stealth, 130mm travel Travel:?130mm Spring Type:?Air |
| Shock |
RockShox Deluxe Ultimate RCT, 185mm x 50mm Travel:?120mm |
| Bottom Bracket |
SRAM DUB MTB Wide, 73mm, BSA threaded |
| Saddle |
Bontrager Arvada, austenite rails, 138mm width |
| Seatpost |
Size: S, RockShox Reverb AXS, 100mm travel, wireless, 34.9mm, 340mm length; Size: M, ML, RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length; Size: L, XL, RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length Type:?Dropper |
Groupset
| Rear Derailleur |
SRAM XX SL Eagle AXS, T-Type |
|---|---|
| Crank |
SRAM XX Eagle, DUB, 30T, T-Type, 55mm chainline, 170mm length |
| Shifters |
SRAM AXS POD Ultimate, paired with dropper |
| Cassette |
SRAM Eagle XS-1299, T-Type, 10-52, 12 speed |
| Chain |
SRAM XX Eagle, T-Type, 12 speed |
| Brakes |
SRAM Level Ultimate 4-piston hydraulic disc Type:?Hydraulic Disc |
Wheels
| Rims |
Front: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29”, Rear: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 29” |
|---|---|
| Tires |
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29×2.40” |
| Disc Rotors |
Size: S, M, ML, L, XL, SRAM HS2, 6-bolt, 160mm; Size: S, M, ML, L, XL, SRAM HS2, 6-bolt, 180mm |
