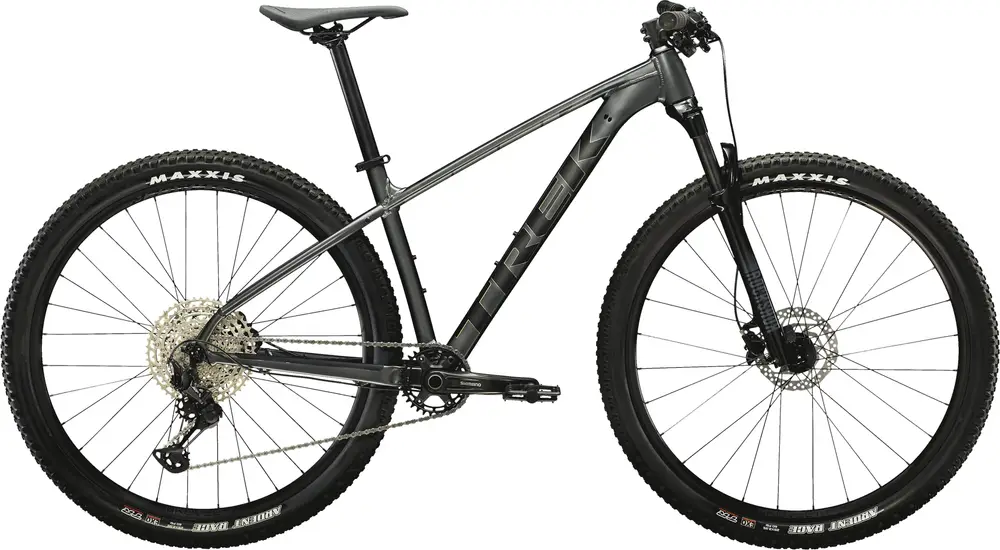

2022 Trek X-Caliber 8 A 27.5″ / 29″ aluminum frame hardtail crosscountry bike with upper mid-range components.
Build
| Frame |
aluminum frame BB Standard:Â BSA, 73mm, Threaded Tire Clearance:Â 2.8″ Colors:Â Satin Lithium Grey; Crystal White |
|---|---|
| Fork |
Size: XS, RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Lite, 80mm travel; Size: S, RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15mm Maxle Lite, 100mm travel; Size: M, M/L, L, XL, XXL, RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15mm Maxle Stealth, 100mm travel |
| Bottom Bracket |
Size: XS, S, M, M/L, L, XL, XXL, Shimano BB-MT501 BSA; Size: XS, S, M, M/L, L, XL, XXL, Shimano SM-BB52, 73mm, threaded external bearing |
| Headset |
Semi-integrated, loose ball bearing, 1-1/8” top, 1.5” bottom |
| Stem |
Size: XS, S, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, M/L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: XL, XXL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length |
| Handlebar |
Size: XS, Bontrager alloy, 31.8mm, 5mm rise, 690mm width; Size: S, M, Bontrager alloy, 31.8mm, 5mm rise, 720mm width; Size: M/L, L, XL, XXL, Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Saddle |
Bontrager Arvada, steel rails, 138mm width |
| Seatpost |
Size: XS, S, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: M, Bontrager alloy, 31.6mm, 12mm offset, 360mm length; Size: M/L, L, XL, XXL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
| Grips |
Bontrager XR Trail Comp, nylon lock-on |
Groupset
| Rear Derailleur |
Shimano XT M8100, long cage |
|---|---|
| Crank |
Size: XS, S, M, Shimano MT511, 30T steel ring, 52mm chainline, 170mm length; Size: M/L, L, XL, XXL, Shimano MT511, 30T steel ring, 52mm chainline, 175mm length |
| Shifters |
Shimano Deore M6100, 12 speed |
| Cassette |
Shimano Deore M6100, 10-51, 12 speed |
| Chain |
Shimano Deore M6100, 12 speed |
| Brakes |
Shimano MT200 hydraulic disc |
Wheels
| Rims |
Size: XS, S, M, M/L, L, XL, XXL, Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, presta valve; Size: XS, S, M, M/L, L, XL, XXL, Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, presta valve |
|---|---|
| Spokes |
14g stainless steel |
| Front Hub |
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
| Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost141, 5mm QR |
| Tires |
Size: XS, S, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5×2.35”; Size: M, M/L, L, XL, XXL, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29×2.35” |
| Disk Rotors |
Size: XS, S, M, M/L, L, XL, XXL, Shimano RT26, 6-bolt,160mm; Size: L, XL, XXL, Shimano RT26, 6-bolt,180mm |
