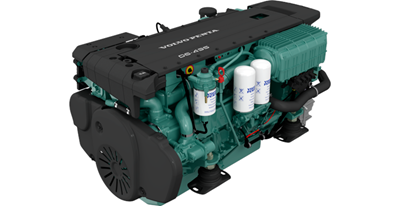

Volvo Penta D6-435 marine diesel engine 435hp

Volvo Penta D6-435 marine diesel engine 435hp

The Volvo Penta D6-435 is an in-line 6-cylinder, 5.5-liter diesel engine using common-rail fuel injection, double overhead camshafts, and turbo. This contributes to excellent operating economy, high reliability and long-term durability. Immediate response and high performance is matched by lower amounts of noise and vibrations further reduced by the balance shaft and the optimized engine suspension. The engine is lightweight and extremely compact for its large swept volume and high output. The rigid cast-iron cylinder block and cylinder head, and exactly controlled fuel injection give excellent onboard comfort.

Technical Specification

• Rated RPM: 3500
• Crankshaft Power: 320 kW
• Crankshaft Power: 435 HP
• Rating: 5
• Emission Compliance: IMO NOx Tier II, EU RCD Stage II, EPA Tier 3
• Number of Cylinders: 6
• Aspiration: Turbo and compressor with charge air cooler
• Fuel Injection System: Common-rail fuel injection
• Control System: Electronic Vessel Control
• Cooling System: Heat Exchanger Cooling
• Fuel Consumption: 220 g/kWh
• Displacement: 5.5 L
